       # BANKSIA TECHNOLOGY PTY., LTD.

          MY IN MODEM

          Card Type              Fax, Modem (asynchronous)
          Chip Set               Unidentified
          Maximum Data Rate      14.4Kbps
          Maximum Fax Rate       14.4Kbps
          Data Bus               8-bit ISA
          Fax Class              Class I & II
          Data Modulation        Bell103/212A/2400
          Protocol
                                 ITU-T V.21, V.22, V.22bis, V.23, V.32,
                                 V.32bis
          Fax Modulation         ITU-T V.17, V.27ter, V.29
          Protocol
          Error                  MNP5, V.42, V.42bis
          Correction/Compression

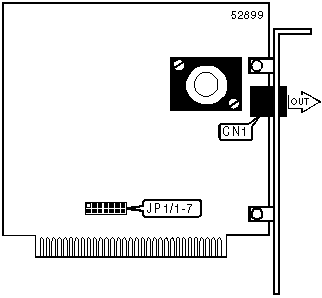

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |           Function            |           Label            |
          |------------------------------------------------------------|
          | Line out                        |           CN1            |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    SERIAL PORT ADDRESS                     |
          |------------------------------------------------------------|
          |      Setting       |       JP1/6       |       JP1/7       |
          |--------------------+-------------------+-------------------|
          |    COM1 (3F8h)     |      Closed       |      Closed       |
          |--------------------+-------------------+-------------------|
          |    COM2 (2F8h)     |      Closed       |       Open        |
          |--------------------+-------------------+-------------------|
          |    COM3 (3E8h)     |       Open        |      Closed       |
          |--------------------+-------------------+-------------------|
          |   í COM4 (2E8h)    |       Open        |       Open        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                         INTERRUPT                          |
          |------------------------------------------------------------|
          | Setting  |  JP1/1  |  JP1/2  |  JP1/3  |  JP1/4  |  JP1/5  |
          |----------+---------+---------+---------+---------+---------|
          |    2     | Closed  |  Open   |  Open   |  Open   |  Open   |
          |----------+---------+---------+---------+---------+---------|
          |   í 3    |  Open   | Closed  |  Open   |  Open   |  Open   |
          |----------+---------+---------+---------+---------+---------|
          |    4     |  Open   |  Open   | Closed  |  Open   |  Open   |
          |----------+---------+---------+---------+---------+---------|
          |    5     |  Open   |  Open   |  Open   | Closed  |  Open   |
          |----------+---------+---------+---------+---------+---------|
          |    7     |  Open   |  Open   |  Open   |  Open   | Closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   SUPPORTED COMMAND SET                    |
          |------------------------------------------------------------|
          |                     Basic AT Commands                      |
          |------------------------------------------------------------|
          | AT, ‘+++’, ‘Comma’, A/                                     |
          |------------------------------------------------------------|
          | A, B, D, E, H, I, L, M, N, O, P, Q, S, T, V, W, X, Y, Z    |
          |------------------------------------------------------------|
          | &C, &D, &F, &G, &K, &L, &P, &R, &S, &T, &V, &W, &Y, &Z     |
          |------------------------------------------------------------|
          |                    Extended AT Commands                    |
          |------------------------------------------------------------|
          | \A, \B, \G, \L, %C, %L, %Q                                 |
          |------------------------------------------------------------|
          |                        S Registers                         |
          |------------------------------------------------------------|
          | S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12,     |
          | S16, S18, S21, S22, S24, S25, S26, S29                     |
          |------------------------------------------------------------|
          | S30 S32, S33, S36, S37, S38, S39, S46, S48, S82, S86, S95  |
          |------------------------------------------------------------|
          | Note: See MHI Help file for full command documentation.    |
          +------------------------------------------------------------+

                            Proprietary AT Command Set

          +------------------------------------------------------------+
          |                    MODULATION SELECTION                    |
          |------------------------------------------------------------|
          | Type:        | Configuration                               |
          |--------------+---------------------------------------------|
          | Format:      | AT [cmds] Fn [cmds]                         |
          |--------------+---------------------------------------------|
          | Description: | Controls line modulation unless automode is |
          |              | selected                                    |
          |------------------------------------------------------------|
          |    Command     |                 Function                  |
          |----------------+-------------------------------------------|
          |       F0       | Automode enabled                          |
          |----------------+-------------------------------------------|
          |       F1       | Force V.21 or Bell103 (according to ATB   |
          |                | command) at 300bps                        |
          |----------------+-------------------------------------------|
          |       F2       | ‘OK’ returned                             |
          |----------------+-------------------------------------------|
          |       F3       | Force V.23 75TX/1200RX originate or       |
          |                | 1200TX/75RX answer FSK                    |
          |----------------+-------------------------------------------|
          |       F4       | Force V.22 or Bell212A (according to ATB  |
          |                | command) at 1200bps                       |
          |----------------+-------------------------------------------|
          |       F5       | Force V.22bis or Bell2400 (according to   |
          |                | ATB command)                              |
          |----------------+-------------------------------------------|
          |       F6       | Force V.32 at 4800bps                     |
          |----------------+-------------------------------------------|
          |       F7       | Force V.32 at 7200bps                     |
          |----------------+-------------------------------------------|
          |       F8       | Force V.32 at 9600bps                     |
          |----------------+-------------------------------------------|
          |       F9       | Force V.32bis at 12000bps                 |
          |----------------+-------------------------------------------|
          |      F10       | Force V.32bis at 14400bps                 |
          +------------------------------------------------------------+

       For proprietary command summary, see BANKSIA TECHNOLOGY PTY., LTD.,
                                  MAC MODEM 288.
