       # PURE DATA, LTD.

          PDI8023-16FL

          NIC Type      Ethernet
          Transfer Rate 10Mbps
          Data Bus      16-bit ISA
          Topology      Star
          Wiring Type   62.5/125 m m Fiber optic cable (e.g. Belden
                        227412)
          Boot ROM      Available

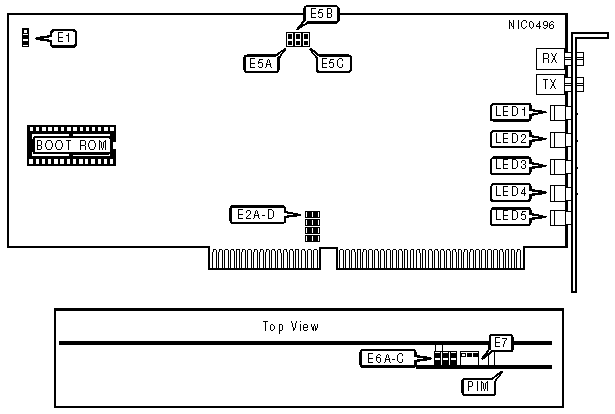

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                SOFTWARE CONFIGURATION RESET                |
          |------------------------------------------------------------|
          |             Setting              |           E1            |
          |----------------------------------+-------------------------|
          | »       |    Normal operation    |    Pins 2 & 3 closed    |
          |---------+------------------------+-------------------------|
          |         |         Reset          |    Pins 1 & 2 closed    |
          |------------------------------------------------------------|
          | Note:Many of the options are configured using the setup    |
          | utility provided with the card. To reset those             |
          | configurations to the factory defaults, move E1 to the     |
          | Reset position (pins 1 & 2 closed) and apply power for a   |
          | few seconds. Always make sure that you turn off the power  |
          | to the computer before you change any jumpers.             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      CARD I/D NUMBER                       |
          |------------------------------------------------------------|
          |    Number    |    E2A     |   E2B    |   E2C    |   E2D    |
          |--------------+------------+----------+----------+----------|
          | »     |  1   |    Open    |   Open   |   Open   |  Closed  |
          |-------+------+------------+----------+----------+----------|
          |       |  2   |    Open    |   Open   |  Closed  |   Open   |
          |-------+------+------------+----------+----------+----------|
          |       |  3   |    Open    |  Closed  |   Open   |   Open   |
          |-------+------+------------+----------+----------+----------|
          |       |  4   |   Closed   |   Open   |   Open   |   Open   |
          |------------------------------------------------------------|
          |   Note:Up to four cards can be installed into a system at  |
          |   the same time. If more than one card is installed each   |
          |   one must have a seperate card I/D number.                |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |  EXTENDED TRANSMIT TIMEOUT AND SIGNAL QUALITY ERROR (SQE)  |
          |                            TEST                            |
          |------------------------------------------------------------|
          |   Timeout    |    SQE     |   E6A    |   E6B    |   E6C    |
          |--------------+------------+----------+----------+----------|
          |   Enabled    |  Enabled   |  Closed  |   Open   |   Open   |
          |--------------+------------+----------+----------+----------|
          |   Disabled   |  Disabled  |   Open   |  Closed  |   Open   |
          |--------------+------------+----------+----------+----------|
          |   Enabled    |  Disabled  |   Open   |   Open   |  Closed  |
          |------------------------------------------------------------|
          | Note:With extended transmit timeout enabled, if the card   |
          | is transmitting for an extented amount of time the         |
          | transmission will be interrupted and continued after a     |
          | preset time. This keeps the card from dominating the       |
          | network.                                                   |
          |                                                            |
          | Signal Quality Error (SQE) is a test of the collision      |
          | circuitry and path.                                        |
          |                                                            |
          | E6 is located on the PIM.                                  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      LOOP BACK ENABLE                      |
          |------------------------------------------------------------|
          |         Setting          |               E7                |
          |--------------------------+---------------------------------|
          | »       |    Disabled    |        Pins 1 & 2 closed        |
          |---------+----------------+---------------------------------|
          |         |    Enabled     |        Pins 2 & 3 closed        |
          |------------------------------------------------------------|
          | Note:A loop back connector is used with diagnostic         |
          | software to trouble-shoot the card.                        |
          |                                                            |
          | E7 is located on the PIM.                                  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                FACTORY CONFIGURED SETTINGS                 |
          |------------------------------------------------------------|
          |            Jumper            |           Setting           |
          |------------------------------+-----------------------------|
          |             E5A              |           Closed            |
          |------------------------------+-----------------------------|
          |             E5B              |            Open             |
          |------------------------------+-----------------------------|
          |             E5C              |            Open             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED  | Color | Status |             Condition              |
          |------+-------+--------+------------------------------------|
          | LED1 | Green |   On   |     Data is being transmitted      |
          |------+-------+--------+------------------------------------|
          | LED1 | Green |  Off   |   Data is not being transmitted    |
          |------+-------+--------+------------------------------------|
          | LED2 | Amber |   On   |       Data is being received       |
          |------+-------+--------+------------------------------------|
          | LED2 | Amber |  Off   |     Data is not being received     |
          |------+-------+--------+------------------------------------|
          | LED3 | Amber |   On   |     Network connection is good     |
          |------+-------+--------+------------------------------------|
          | LED3 | Amber |  Off   |    Network connection is broken    |
          |------+-------+--------+------------------------------------|
          | LED4 |  Red  |   On   |    Card is transmitting for an     |
          |      |       |        |           extended time            |
          |------+-------+--------+------------------------------------|
          | LED4 |  Red  |  Off   |          Normal operation          |
          |------+-------+--------+------------------------------------|
          | LED5 |  Red  |   On   |   Collision detected on network    |
          |------+-------+--------+------------------------------------|
          | LED5 |  Red  |  Off   |          Normal operation          |
          +------------------------------------------------------------+
