       # PACKARD BELL

          386-33

          Processor    80386DX
          Processor    33MHz
          Speed
          Chip Set     Intel
          Max. Onboard 8MB
          DRAM
          SRAM Cache   None
          BIOS         Phoenix
          Dimensions   355mm x 304mm
          I/O Options  32-bit expansion slots (2), parallel port, serial
                       ports (2)
          NPU Options  80387DX

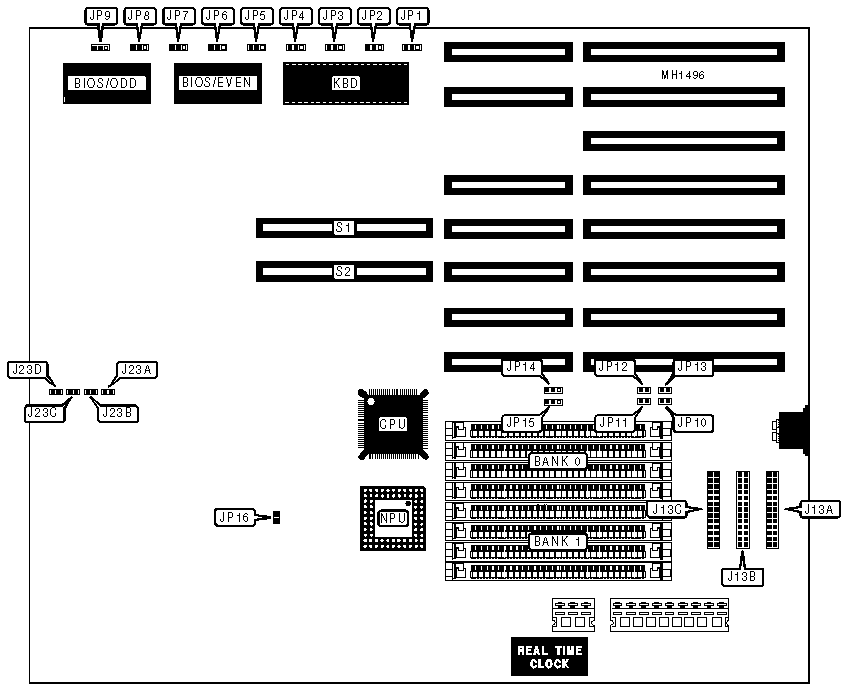

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          | Purpose          | Location  | Purpose         | Location  |
          |------------------+-----------+-----------------+-----------|
          | Parallel port    |   J13A    | Reset switch    |   J23B    |
          |------------------+-----------+-----------------+-----------|
          | Serial port 1 (9 | J13B/pins | Speaker         |   J23C    |
          | pin)             |   1-10    |                 |           |
          |------------------+-----------+-----------------+-----------|
          | Serial port 2 (9 | J13B/pins | Power LED &     |   J23D    |
          | pin)             |   11-20   | keylock         |           |
          |------------------+-----------+-----------------+-----------|
          | Serial port 2    |   J13C    | 32-bit          |  S1 & S2  |
          | (25 pin)         |           | expansion slots |           |
          |------------------+-----------+-----------------+-----------|
          | Reserved for     |   J23A    |                 |           |
          | future use       |           |                 |           |
          |------------------------------------------------------------|
          |      Note:J13C is a 25 pin version of serial port 2 (J13B  |
          |      pins 11-20). Either connector may be used, but not    |
          |      both.                                                 |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Function               | Jumper |  Position  |
          |--------------------------------------+--------+------------|
          | » | Monitor type select color        |  JP5   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Monitor type select monochrome   |  JP5   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Keyboard reset disabled          |  JP6   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Keyboard reset enabled           |  JP6   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | NPU disabled                     |  JP7   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | NPU enabled                      |  JP7   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Printer acknowledge trailing     |  JP8   | pins 2 & 3 |
          |   | edge                             |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | Printer acknowledge leading edge |  JP8   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | BIOS type select 2764            |  JP9   | pins 1 & 2 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          |   | BIOS type select 27128           |  JP9   | pins 2 & 3 |
          |   |                                  |        |   closed   |
          |---+----------------------------------+--------+------------|
          | » | Factory configured - do not      |  JP16  |    Open    |
          |   | alter                            |        |            |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |        SERIAL PORT 1 (J13B/PINS 1-10) CONFIGURATION        |
          |------------------------------------------------------------|
          |             Mode              |            JP3             |
          |-------------------------------+----------------------------|
          | »   |     Enabled (COM1)      |     pins 1 & 2 closed      |
          |-----+-------------------------+----------------------------|
          |     |        Disabled         |     pins 2 & 3 closed      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |   SERIAL PORT 2 (J13B/PINS 11-20 OR J13C) CONFIGURATION    |
          |------------------------------------------------------------|
          |              Mode               |           JP4            |
          |---------------------------------+--------------------------|
          | »      |     Enabled (COM2)     |    pins 1 & 2 closed     |
          |--------+------------------------+--------------------------|
          |        |        Disabled        |    pins 2 & 3 closed     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |             PARALLEL PORT (J13A) CONFIGURATION             |
          |------------------------------------------------------------|
          |       LPT        |        JP1         |        JP2         |
          |------------------+--------------------+--------------------|
          | » |     LPT1     | pins 1 & 2 closed  | pins 2 & 3 closed  |
          |---+--------------+--------------------+--------------------|
          |   |     LPT2     | pins 2 & 3 closed  | pins 1 & 2 closed  |
          |---+--------------+--------------------+--------------------|
          |   |   Disabled   | pins 2 & 3 closed  | pins 2 & 3 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size | Bank 0 | Bank 1 |  JP11  |  JP12  |  JP14  |  JP15  |
          |------+--------+--------+--------+--------+--------+--------|
          | 1MB  |  (4)   |  NONE  |  Open  |  Open  | pins 1 | pins 1 |
          |      | 256K x |        |        |        |  & 2   |  & 2   |
          |      |   9    |        |        |        |        |        |
          |------+--------+--------+--------+--------+--------+--------|
          | 2MB  |  (4)   |  (4)   | Closed |  Open  | pins 1 | pins 1 |
          |      | 256K x | 256K x |        |        |  & 2   |  & 2   |
          |      |   9    |   9    |        |        |        |        |
          |------+--------+--------+--------+--------+--------+--------|
          | 4MB  | (4) 1M |  NONE  |  Open  | Closed | pins 2 | pins 2 |
          |      |  x 9   |        |        |        |  & 3   |  & 3   |
          |------+--------+--------+--------+--------+--------+--------|
          | 8MB  | (4) 1M | (4) 1M | Closed | Closed | pins 2 | pins 2 |
          |      |  x 9   |  x 9   |        |        |  & 3   |  & 3   |
          |------------------------------------------------------------|
          | Note:Pins designated should be in the closed position.     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   RAM TYPE CONFIGURATION                   |
          |------------------------------------------------------------|
          |          Type          |      JP10       |      JP13       |
          |------------------------+-----------------+-----------------|
          |   |      RAS/CAS       |      Open       |      Open       |
          |---+--------------------+-----------------+-----------------|
          | » |     Fast Paged     |     Closed      |     Closed      |
          |---+--------------------+-----------------+-----------------|
          |   |   Static Column    |      Open       |     Closed      |
          +------------------------------------------------------------+
