Published on : 2025-03-14 14:52

       WakeOnLan is a very useful feature, especially if you're a lazy
       person. With WakeOnLan you can start your machines without walking
       or using your fingers and push the power button.

 (IMG)  A photo of how I wake up my cluster

       2026-02-28 Update
       ‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾

       The script below stopped working for me. I managed to fix it by
       adding the Broastcast IP Address to the wakeonlan command.

       Read more at:
       ‾‾‾‾‾‾‾‾‾‾‾‾‾

 (DIR)  Wake-on-Lan Script Update

       What you need
       ‾‾‾‾‾‾‾‾‾‾‾‾‾

       You only need 2 things: wakeonlan and ethtool. You can easily
       install them with:

           sudo apt install wakeonlan ethtool

       wakeonlan is needed on the machine you'll be using to send the
       wake up command while ethtool is used to configure your network
       card.

       Using ethtool to enable Wake-on-LAN
       ‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾

       Find the Network Adapter (in my case it's `enp1s0`)
       ‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾

           ip a

       Check if WakeOnLan is supported
       ‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾

           sudo ethtool enp1s0 | grep "Wake-on"

       You should see something like ` Supports Wake-on: pumbg`.
       To enable WakeOnLan you have to:

           sudo ethtool --change enp1s0 wol g

       Right now WakeOnLan is enabled but the setting is not persistent.

       Persist Wake-on-LAN After Reboot
       ‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾

           sudo pico /etc/systemd/system/wol.service

       Add the following and replace `enp1s0` with your network card

           [Unit]
           Description=Enable Wake On Lan

           [Service]
           Type=oneshot
           ExecStart = /usr/sbin/ethtool --change enp1s0 wol g

           [Install]
           WantedBy=basic.target


       Enable the service:
       ‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾

           sudo systemctl enable wol.service

       Using wakeonlan to start your computers
       ‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾‾

       In order to wake up your computers with a magic wakeonlan packet
       you need to know it's MAC address. You can easily find it with

           sudo ethtool -P enp1s0

       Once you get the MAC address you can easily wake the computer up
       from another computer using the wakeonlan command:

           wakeonlan "D2:CB:3B:20:DC:AE"

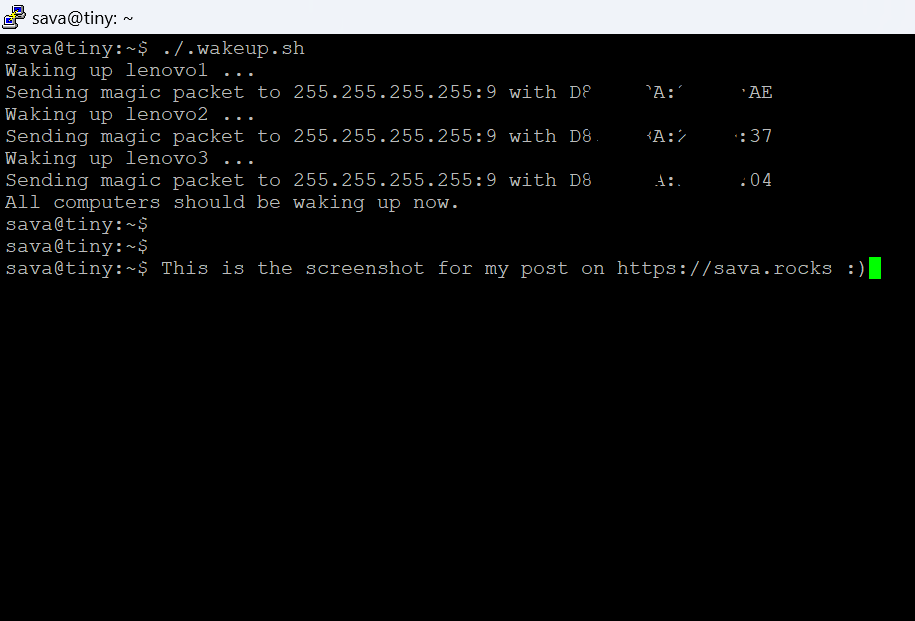

       I have create a small bash script to wake up all my 3 Lenovo M53's
       at once:

           #!/usr/bin/env bash

           # MAC addresses (Not the real ones)
           MAC1="D2:CB:3B:20:DC:AE" # lenovo1 mac
           MAC2="D2:CB:3B:20:DD:37" # lenovo2 mac
           MAC3="D2:CB:3B:20:D6:04" # lenovo3 mac

           # Wake up the three computers
           echo "Waking up lenovo1 ..."
           wakeonlan $MAC1

           echo "Waking up lenovo2 ..."
           wakeonlan $MAC2

           echo "Waking up lenovo3 ..."
           wakeonlan $MAC3

           echo "All computers should be waking up now."
