2023-07-12
       Tags: misc

       Schrödinger's  Cat was a quantum computing misc  challenge
       repurposed written for UIUCTF 2023.
       The challenge had  unrated difficulty  and had 17 solves during the
       competition.

       == Description


           Our boss got mad that our SSH keys were weak, so  now we're
           using a quantum computer to be extra secure!

       === Hints


           There are  known  bugs  in OpenQASM transpilation  — please use
           Qiskit, and optimize your circuit before serialization.
           Shendefraude?   Bullocks  I  say!   You're   way   off  the
           Markov. (This was a pretty terrible allusion to this paper
           [1]             that             describes             Qiskit's
           `StatePreparation` algorithm.)

       === Files



       == Solution


       === Code

       import numpy as np
       from base64 import b64encode
       from qiskit import *
       from qiskit.circuit.library import StatePreparation
       from qiskit.compiler import transpile
       import qiskit.quantum_info as qi

       WIRES = 5

       # helper functions from challenge
       def normalization(msg):
           assert(len(msg) <= WIRES**2)
           state = np.array([ord(c) for c in msg.ljust(2**WIRES, ' ')])
           norm = np.linalg.norm(state)
           state = state / norm
           return (state, norm)

       def transform(sv, n):
           legal = lambda c: ord(' ') <= c and c <= ord('~')
           renormalized = [float(i.real)*n for i in sv]
           rn_rounded = [round(i) for i in renormalized]
           if not np.allclose(renormalized, rn_rounded, rtol=0, atol=1e-2):
               print("Your rehydrated statevector isn't very precise. Try adding at least 6 decimal places of precision, or contact the challenge author if you think this is a mistake.")
               print(rn_rounded)
               exit(0)
           if np.any([not legal(c) for c in rn_rounded]):
               print("Invalid ASCII characters.")
               exit(0)
           return ''.join([chr(n) for n in rn_rounded])


       def solve_qiskit():
           echo_sv, _ = normalization("echo 'Hello, world!'")
           cat_sv, cat_n = normalization("cat /flag.txt")

           circ = QuantumCircuit(WIRES)
           circ.append(StatePreparation(cat_sv, label="sp"), range(WIRES))
           circ.append(StatePreparation(echo_sv, label="inv_sp", inverse=True), range(WIRES))

           # append the original StatePreparation to confirm that this works; remove for payload
           #circ.append(StatePreparation(echo_sv), range(WIRES))
           circ = transpile(circ, backend=Aer.get_backend("aer_simulator"), optimization_level=3)
           sv = qi.Statevector.from_instruction(circ)

           return b64encode(circ.qasm().encode()), cat_n

       if __name__ == "__main__":
           print(solve_qiskit())

       === Explanation


       We connect  to  the challenge  server  and  are  greeted  with  the
       following:
       print("Welcome to the Quantum Secure Shell. Instead of dealing with pesky encryption, just embed your commands into our quantum computer! I batched the next command in with yours, hope you're ok with that!")

       given_sv, given_n = normalization("echo 'Hello, world!'")
       print_given(given_sv, given_n)
       print("\nPlease type your OpenQASM circuit as a base64 encoded string: ")
       Welcome to the Quantum Secure Shell. Instead of dealing with pesky encryption, just embed your commands into our quantum computer! I batched the next command in with yours, hope you're ok with that!
            ┌─────────────────┐┌───────────────────────┐
       q_0: ┤0                ├┤0                      ├
            │                 ││                       │
       q_1: ┤1                ├┤1                      ├
            │                 ││                       │
       q_2: ┤2 Your Circ Here ├┤2 echo 'Hello, world!' ├
            │                 ││                       │
       q_3: ┤3                ├┤3                      ├
            │                 ││                       │
       q_4: ┤4                ├┤4                      ├
            └─────────────────┘└───────────────────────┘
       Normalization constant: 419.1873089681986

       Executing...

       Hello, world!

       Please type your OpenQASM circuit as a base64 encoded string:

       Taking a  look at the  source, we see  that  we input  some quantum
       circuit which is  inserted  before  a  different  circuit,  and the
       resultant  statevector  is  then "unnormalized",  interpreted  as a
       string, and fed to `os.system`.

       Our   end    goal   should   be   to   embed    a    string    like
       `ls`  or  `cat   flag.txt`;
       this  is   trivial  with  the   `normalization`
       function provided.
       cat_sv, cat_n = normalization("cat /flag.txt")
       cat_circ = StatePreparation(cat_sv, label="state_prep")

       ==== What is the normalization constant?


       The  "measurement rule" in quantum mechanics  dictates that the sum
       of all amplitudes squared must equal 1. In order to encode a vector
       of  ASCII values in the circut, we first need  to  normalize it; to
       get  back to  the  original vector, we "undo"  the normalization by
       multiplying the scalar normalization constant.

       Good news is, we  didn't receive any mod mail  on the normalization
       constant so... hopefully no one had any issues?

       ==== Where's the measurement?


       You might be wondering how one might fit a 32 character string into
       5 qubits, and more importantly; where are the measurement gates?
       The output of the circuit  is the statevector, which means
       if  you  were to measure the  qubits  instead,  the probability  of
       measuring a  specific outcome would correspond to amplitudes in the
       statevector.  Using  the  statevector,  we're  able  to  losslessly
       finangle  lots of  data into  the  rotation of  a qubit  that would
       otherwise be lost through measurement.

       ==== About `StatePreparation`


       The existing circuit embeddeds  the string `echo  'Hello,
       world!'`                  using                  Qiskit's
       `StatePreparation`  function. This is a form of
       amplitude encoding,  a  way  to  encode information in the
       probability amplitudes of discrete quantum states.
       A      common       point      of      confusion      was      that
       `StatePreparation` returns  a statevector; it's
       actually an  algorithm  for creating a circuit  that  will
       transform \ket{0} into a desired statevector.
       circ = StatePreparation(given_sv)
       print(qi.Statevector.from_instruction(circ) == qi.Statevector(given_sv))
       True

       ==== Hope you didn't sleep through linalg (I did)


       The next part  is to  figure out how to  "get rid  of"  the circuit
       applied after your input, which encodes the string  `echo
       'Hello, world!'`. Quantum circuits  are all  really  just
       unitary matrices, which means they're invertible.

       So  if  we  have  input I, `echo` input  E, and
       desired payload P in IE=P, that means I=(PE^{\dagger}).

       In order to calculate E^{\dagger}, we need to grab E:
       echo_sv, _ = normalization("echo 'Hello, world!'")
       E = StatePreparation(echo_sv, label="echo")

       And then take its inverse:
       E_inv = E.inverse()

       Finally, we compose the individual circuits together:
       circ = QuantumCircuit(WIRES)
       circ.append(cat_circ, range(WIRES))
       circ.append(E_inv, range(WIRES))

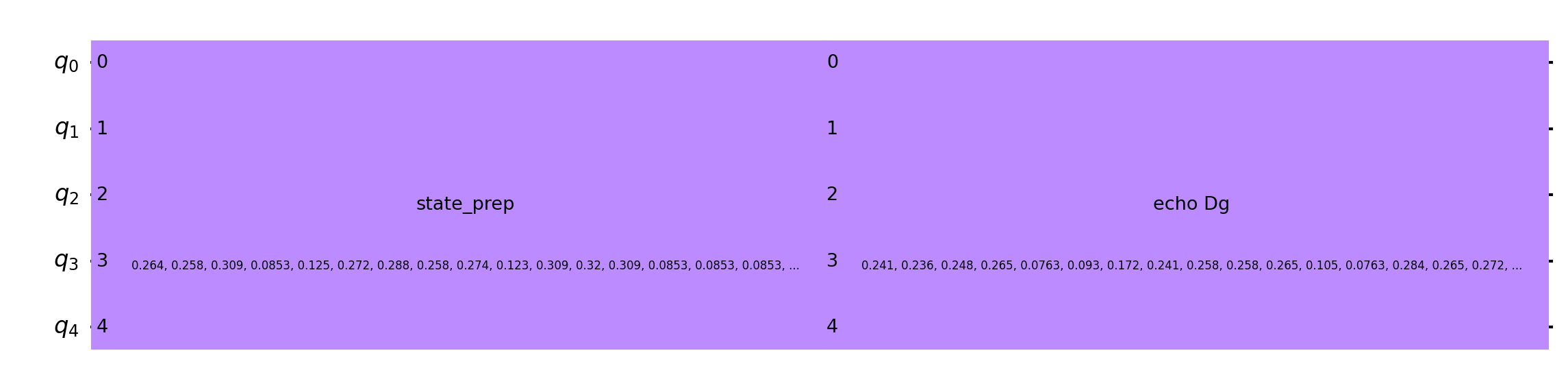

       circ.draw('mpl', filename="schroedingers_cat/circuit.png")
 (IMG) image

       Gross (and also kinda wrong). Qiskit's QASM converter  will happily
       spit out  black boxes like above, assuming whoever will consume the
       QASM will know what that means.

       ==== An aside on OpenQASM


       If we try to convert our circuit as is to  QASM,  we run  into some
       issues:
       OPENQASM 2.0;
       include "qelib1.inc";
       gate multiplex1_reverse_dg q0 { ry(0.6960408807071358) q0; }
       gate multiplex1_reverse_dg_5365343888 q0 { ry(1.5295115311526133) q0; }
       gate multiplex1_reverse_reverse_dg q0 { ry(-0.04128479564228338) q0; }
       gate multiplex2_reverse_dg q0,q1 { multiplex1_reverse_dg_5365343888 q0; cx q1,q0; multiplex1_reverse_reverse_dg q0; cx q1,q0; }
       gate multiplex1_reverse_dg_5273843856 q0 { ry(1.4620958103644106) q0; }
       gate multiplex1_reverse_reverse_dg_5342559248 q0 { ry(0.10867083226993679) q0; }
       gate multiplex2_reverse_dg_5365334864 q0,q1 { multiplex1_reverse_dg_5273843856 q0; cx q1,q0; multiplex1_reverse_reverse_dg_5342559248 q0; }
       gate multiplex1_reverse_reverse_reverse_dg q0 { ry(0.10867083226993673) q0; }

       In order to emit QASM that Qiskit will actually understand, we need
       to transpile our circuit to a set of universal basis gates. This is
       also  how  quantum circuits are run  on  hardware, as each computer
       only understands a certain set of basis gates.
       from qiskit import Aer
       from qiskit.compiler import transpile
       circ_transpiled = transpile(circ, backend=Aer.get_backend("aer_simulator"), optimization_level=3)
       good_qasm = circ_transpiled.qasm()
       print('\n'.join(good_qasm.split('\n')[:10]))
       OPENQASM 2.0;
       include "qelib1.inc";
       qreg q[5];
       u3(1.4344105714005226,0,0) q[0];
       u3(1.5262619493655363,0,0) q[1];
       u3(1.4620958103644108,0,0) q[2];
       u3(1.5295115311526135,0,0) q[3];
       u3(0.6960408807071358,0,0) q[4];
       cx q[4],q[3];
       u3(0.04128479564228338,-pi,-pi) q[3];

       A little tangent on OpenQASM:  the  implementation  is  so
       scuffed and incomplete to the point it makes Yandere Simulator look
       like enterprise software.  I had poked  around trying  to develop a
       challenge  focused  on  OpenQASM, but found  that  literally  every
       interesting part of the spec was unimplemented 😢

       Here's      Qiskit's      implementation       of       OpenQASM3's
       `include` statement:
       def visit_Include(self, node: ast.Include, context: State) -> State:
               if node.filename != "stdgates.inc":
                       raise_from_node(node, "non-stdgates imports not currently supported")
               for name, (builder, n_arguments, n_qubits) in _STDGATES.items():
                       context = self._define_gate(name, builder, n_arguments, n_qubits, node, context)
               return context

       I understand that this is alpha software for a rather small part of
       Qiskit, and I'm  not trying  to pile  on  the  Qiskit devs for  not
       lavishing more attention on this, but... bruh.

       ==== Finishing up


       All that's left  is to `b64encode` this bad boy
       and ship it off to remote.
       payload = b64encode(good_qasm.encode())
       # server side
       transform(qi.Statevector.from_instruction(make_circ(given_sv, QuantumCircuit.from_qasm_str(b64decode(payload).decode()))), cat_n)
       cat /flag.txt

       ==== Retrospection


       When the  challenge was first released  (on  the second day  of the
       CTF), I  decided  to  not  release the  source.  Although  that was
       intended       to        prevent       code       reuse        from
       `server.py`, it  made the  challenge waaaay too
       guessy. Not  only  that, but  it  was  probably better  to  provide
       primitives so you  could focus on  solving the challenge instead of
       placating Qiskit's fussiness.

       This  very much locks you into using Qiskit and — according to some
       modmail I  received — a particular  way of  solving  the challenge.
       Even  though the  server  was built against  the latest  version of
       Qiskit  (and thus the version  people would get from `pip
       install  -r requirements.txt`), in  the  future  I  would
       release the  server Dockerfile to remove  any  source of  impurity.
       (This is  somewhat  ironic,  given that  the  challenge author uses
       NixOS.)
