       # UNIDENTIFIED

          SVGA GRAPHICS ADAPTER(16-BIT)

          Card Type                    Video card
          Video Chip Set               Trident
          Maximum Video Memory         512KB DRAM
          Video Types Supported        Monochrome, CGA, EGA, VGA, XVGA
          Highest Resolution Supported 1024 x 768,
          Data Bus                     16-bit ISA

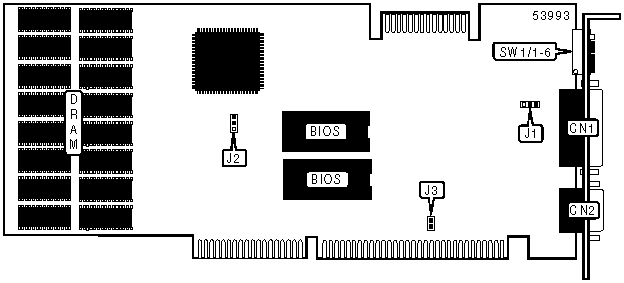

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |       Function       | Label |      Function       | Label |
          |----------------------+-------+---------------------+-------|
          | 15-pin analog video  |  CN1  | 9-pin digital video |  CN2  |
          | port                 |       | port                |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Function                | Label | Position  |
          |----------------------------------------+-------+-----------|
          | » | Card for use with a VGA or CGA     |  J1   | Pins 2 &  |
          |   | monitor                            |       | 3 closed  |
          |---+------------------------------------+-------+-----------|
          |   | Card for use with CGA or MDA       |  J1   | Pins 1 &  |
          |   | monitor                            |       | 2 closed  |
          |---+------------------------------------+-------+-----------|
          | » | IRQ9 disabled                      |  J3   |   Open    |
          |---+------------------------------------+-------+-----------|
          |   | IRQ9 enabled                       |  J3   |  Closed   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     BUS SIZE SELECTION                     |
          |------------------------------------------------------------|
          |              Setting               | Label |   Position    |
          |------------------------------------+-------+---------------|
          | » | Autodetect                     |  J2   |  Pins 2 & 3   |
          |   |                                |       |    closed     |
          |---+--------------------------------+-------+---------------|
          |   | Autodetect (Compaq, Micronics) |  J2   |  Pins 1 & 2   |
          |   |                                |       |    closed     |
          |---+--------------------------------+-------+---------------|
          |   | 8-bit                          |  J2   |     Open      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               MONITOR CONFIGUATION SELECTION               |
          |------------------------------------------------------------|
          |      Setting      |  SW1/1   |  SW1/2  |  SW1/3  |  SW1/4  |
          |-------------------+----------+---------+---------+---------|
          |     VGA mode      |    On    |   On    |   On    |   On    |
          |-------------------+----------+---------+---------+---------|
          |     EGA mode      |   Off    |   On    |   On    |   On    |
          |-------------------+----------+---------+---------+---------|
          |     CGA mode      |    On    |   Off   |   On    |   On    |
          |-------------------+----------+---------+---------+---------|
          | MDA/Hercules mode |   Off    |   Off   |   On    |   On    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   ADDRESS DECODING SPEED                   |
          |------------------------------------------------------------|
          |                Setting                 | Label | Position  |
          |----------------------------------------+-------+-----------|
          | Fast address decode                    | SW1/5 |    0n     |
          |----------------------------------------+-------+-----------|
          | Slow address decode                    | SW1/5 |    Off    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    DATA PATH SELECTION                     |
          |------------------------------------------------------------|
          |                Setting                 | Label | Position  |
          |----------------------------------------+-------+-----------|
          | 16-bit data path                       | SW1/6 |    On     |
          |----------------------------------------+-------+-----------|
          | 8-bit data path                        | SW1/6 |    Off    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |             VIDEO MEMORY CONFIGURATION (DRAM)              |
          |------------------------------------------------------------|
          |    Size     |        Bank 0        |        Bank 1         |
          |-------------+----------------------+-----------------------|
          |    256KB    |       (8) 32KB       |         None          |
          |-------------+----------------------+-----------------------|
          |    512KB    |       (8) 32KB       |       (8) 32KB        |
          |------------------------------------------------------------|
          | Note: Exact location of banks is unidentified              |
          +------------------------------------------------------------+
