       # UNIDENTIFIED

          1570SX (REV. A)

          Card Type                    Video card
          Video Chip Set               Unidentified
          Maximum Video Memory         1MB
          Data Bus                     16-bit ISA
          Video Types Supported        VGA
          Highest Resolution Supported Unidentified

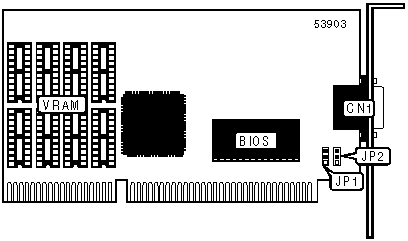

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |            Function            |           Label           |
          |--------------------------------+---------------------------|
          | 15-pin video analog video port |            CN1            |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 VIDEO MEMORY CONFIGURATION                 |
          |------------------------------------------------------------|
          |      Note: Card is factory installed with 256KB memory. It |
          |      is upgradeable to 512KB or 1MB. The chip size & banks |
          |      are unidentified.                                     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               VIDEO INTERLACE CONFIGURATION                |
          |------------------------------------------------------------|
          |    Interlace     |        JP1         |        JP2         |
          |------------------+--------------------+--------------------|
          | » |   Enabled    | Pins 1 & 2 closed  | Pins 2 & 3 closed  |
          |---+--------------+--------------------+--------------------|
          |   |   Disabled   | Pins 2 & 3 closed  | Pins 1 & 2 closed  |
          +------------------------------------------------------------+
