       # UNIDENTIFIED

          RTVGA-V3-91020-A

          Category                     Video
          Video Types Supported        XVGA
          Video Processor              Realtek RTG3106
          Highest Resolution Supported 1280 x 1024
          Data Bus Type                16-bit ISA
          Memory Type                  DRAM
          Maximum Onboard Memory       1MB

 (IMG) IMG 1


          +------------------------------------------------------------+

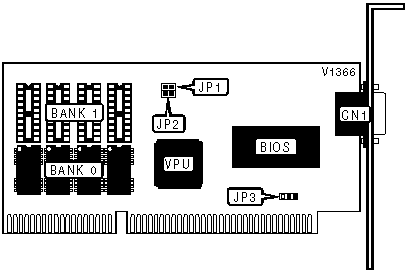

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |            Purpose            |          Location          |
          |-------------------------------+----------------------------|
          | 15-pin analog video port      |            CN1             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |         RESOLUTION (1024 X 768) MODE CONFIGURATION         |
          |------------------------------------------------------------|
          |                 Mode                 |         JP1         |
          |--------------------------------------+---------------------|
          | »      |         Interlaced          |        Open         |
          |--------+-----------------------------+---------------------|
          |        |       Non-interlaced        |       Closed        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               ADDRESS DECODING CONFIGURATION               |
          |------------------------------------------------------------|
          |               Speed                |          JP2          |
          |------------------------------------+-----------------------|
          | »  |       Unlatched (Fast)        |         Open          |
          |----+-------------------------------+-----------------------|
          |    |        Latched (Slow)         |        Closed         |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    INTERRUPT SELECTION                     |
          |------------------------------------------------------------|
          |            IRQ             |              JP3              |
          |----------------------------+-------------------------------|
          |            2/9             |       Pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |             7              |       Pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |      Memory      |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |      512KB       |    (4) 256K x 4    |        NONE        |
          |------------------+--------------------+--------------------|
          |       1MB        |    (4) 256K x 4    |    (4) 256K x 4    |
          +------------------------------------------------------------+
