       # VISIONETICS INTERNATIONAL

          VIGA GENLOCK+

          Category           Video
          Video Types        XVGA
          Supported
          Video Processor    Tseng Labs ET4000 (Exact location is
                             unidentified)
          Highest Resolution 1024 x 768
          Supported
          Data Bus Type      16-bit ISA
          Memory Type        VRAM
          Maximum Onboard    1MB (Exact location of memory is
          Memory             unidentified)

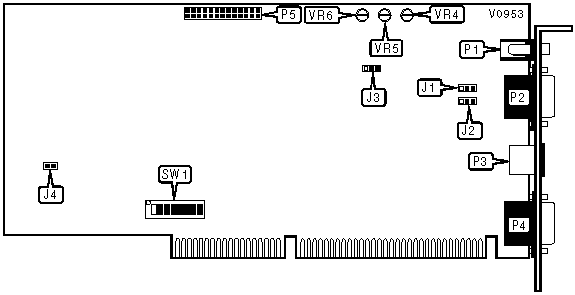

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |    Purpose    | Location |       Purpose        | Location |
          |---------------+----------+----------------------+----------|
          | RCA connector |    P1    | 15-pin analog video  |    P4    |
          |               |          | port                 |          |
          |---------------+----------+----------------------+----------|
          | 9-pin analog  |    P2    | VGA feature          |    P5    |
          | video port    |          | connector            |          |
          |---------------+----------+----------------------+----------|
          | Minin-Din     |    P3    |                      |          |
          | connector     |          |                      |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |              P2 (PIN 9) ASSIGNMENT SELECTION               |
          |------------------------------------------------------------|
          |          Setting           |              J1               |
          |----------------------------+-------------------------------|
          |          C input           |       Pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |          R - Y in          |       Pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |              P2 (PIN 7) ASSIGNMENT SELECTION               |
          |------------------------------------------------------------|
          |          Setting           |              J2               |
          |----------------------------+-------------------------------|
          |        Overlay out         |       Pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          |          B - Y in          |       Pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   INPUT SIGNAL SELECTION                   |
          |------------------------------------------------------------|
          |           Setting           |              J3              |
          |-----------------------------+------------------------------|
          |          Y/C input          |      Pins 1 & 2 closed       |
          |-----------------------------+------------------------------|
          |       Composite input       |      Pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    INTERRUPT SELECTION                     |
          |------------------------------------------------------------|
          |             IRQ2              |             J4             |
          |-------------------------------+----------------------------|
          |            Enabled            |           Closed           |
          |-------------------------------+----------------------------|
          |           Disabled            |            Open            |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    VGA POWER SELECTION                     |
          |------------------------------------------------------------|
          |             Setting             |          SW1/5           |
          |---------------------------------+--------------------------|
          | » |           Enabled           |           Off            |
          |---+-----------------------------+--------------------------|
          |   |          Disabled           |            On            |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 I/O BASE ADDRESS SELECTION                 |
          |------------------------------------------------------------|
          |   Address    |   SW1/1   |   SW1/2   |  SW1/3   |  SW1/4   |
          |--------------+-----------+-----------+----------+----------|
          | » |   300h   |    Off    |    On     |    On    |    On    |
          |---+----------+-----------+-----------+----------+----------|
          |   |   200h   |    On     |    On     |    On    |    On    |
          |---+----------+-----------+-----------+----------+----------|
          |   |   220h   |    On     |    On     |    On    |   Off    |
          |---+----------+-----------+-----------+----------+----------|
          |   |   240h   |    On     |    On     |   Off    |    On    |
          |---+----------+-----------+-----------+----------+----------|
          |   |   260h   |    On     |    On     |   Off    |   Off    |
          |---+----------+-----------+-----------+----------+----------|
          |   |   280h   |    On     |    Off    |    On    |    On    |
          |---+----------+-----------+-----------+----------+----------|
          |   |   3C0h   |    Off    |    Off    |   Off    |    On    |
          |---+----------+-----------+-----------+----------+----------|
          |   |   3E0h   |    Off    |    Off    |   Off    |   Off    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                       BIOS SELECTION                       |
          |------------------------------------------------------------|
          |             Setting             |          SW1/6           |
          |---------------------------------+--------------------------|
          | » |           Enabled           |            On            |
          |---+-----------------------------+--------------------------|
          |   |          Disabled           |           Off            |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                BIOS BASE ADDRESS SELECTION                 |
          |------------------------------------------------------------|
          |        Address         |      SW1/7      |      SW1/8      |
          |------------------------+-----------------+-----------------|
          | »  |       C800h       |       Off       |       Off       |
          |----+-------------------+-----------------+-----------------|
          |    |       D000h       |       Off       |       On        |
          |----+-------------------+-----------------+-----------------|
          |    |       D800h       |       On        |       Off       |
          |----+-------------------+-----------------+-----------------|
          |    |       E000h       |       On        |       On        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               TEXT MODE KEY DELAY ADJUSTMENT               |
          |------------------------------------------------------------|
          |          Setting           |              VR4              |
          |----------------------------+-------------------------------|
          |          Increase          |           Clockwise           |
          |----------------------------+-------------------------------|
          |          Decrease          |      Counter - clockwise      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |      GRAPHICS MODE >800 X 600 KEY DELAY ADJUSTMENT      |
          |------------------------------------------------------------|
          |          Setting           |              VR5              |
          |----------------------------+-------------------------------|
          |          Increase          |           Clockwise           |
          |----------------------------+-------------------------------|
          |          Decrease          |      Counter - clockwise      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |       GRAPHICS MODE £ 800 X 600 KEY DELAY ADJUSTMENT       |
          |------------------------------------------------------------|
          |          Setting           |              VR6              |
          |----------------------------+-------------------------------|
          |          Increase          |           Clockwise           |
          |----------------------------+-------------------------------|
          |          Decrease          |      Counter - clockwise      |
          +------------------------------------------------------------+
