       # UNIDENTIFIED

          TGUI 9400CXI-VLB (VERSION 2)

          Category                     Video
          Video Types Supported        XVGA
          Video Processor              Trident Microsystems, Inc.
          Highest Resolution Supported 1280 x 1024
          Data Bus Type                VESA local-bus
          Memory Type                  DRAM
          Maximum Onboard Memory       2MB

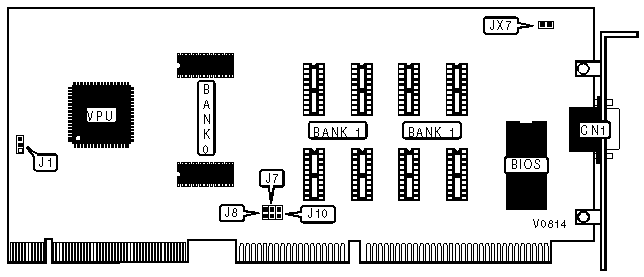

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |            Purpose            |          Location          |
          |-------------------------------+----------------------------|
          | 15-pin analog video port      |            CN1             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                       VL-BUS TIMING                        |
          |------------------------------------------------------------|
          |          Setting           |              J1               |
          |----------------------------+-------------------------------|
          | » |        Standard        |       Pins 2 & 3 closed       |
          |---+------------------------+-------------------------------|
          |   |       Alternate        |       Pins 1 & 2 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     VERTICAL SCAN RATE                     |
          |------------------------------------------------------------|
          |              Setting              |           J7           |
          |-----------------------------------+------------------------|
          | » |  Monitor scan rate < 48.7KHz  |         Closed         |
          |---+-------------------------------+------------------------|
          |   |  Monitor scan rate £ 48.7MHz  |          Open          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                         DRAM SPEED                         |
          |------------------------------------------------------------|
          |            DRAM Speed             |           J8           |
          |-----------------------------------+------------------------|
          | » |             80ns              |         Closed         |
          |---+-------------------------------+------------------------|
          |   |         60ns or 70ns          |          Open          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                         DRAM CLOCK                         |
          |------------------------------------------------------------|
          |             Setting             |           J10            |
          |---------------------------------+--------------------------|
          | » |          Standard           |          Closed          |
          |---+-----------------------------+--------------------------|
          |   |          Enhanced           |           Open           |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                        VL-BUS SPEED                        |
          |------------------------------------------------------------|
          |            Setting            |            JX7             |
          |-------------------------------+----------------------------|
          |       CPU speed £ 33MHz       |            Open            |
          |-------------------------------+----------------------------|
          |       CPU speed > 33MHz       |           Closed           |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          | » |     1MB      |    (2) 512K x 8    |        None        |
          |---+--------------+--------------------+--------------------|
          |   |     2MB      |    (2) 512K x 8    |    (8) 256K x 4    |
          +------------------------------------------------------------+
