       # UNIDENTIFIED

          ET 4000

          Category                     Video
          Video Types Supported        XVGA
          Video Processor              ET-4000
          Highest Resolution Supported 1024 x 768
          Data Bus Type                16-bit ISA
          Memory Type                  DRAM
          Maximum Onboard Memory       1024KB

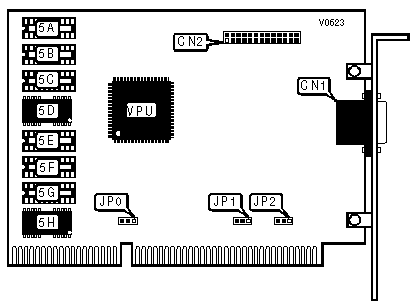

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Purpose         | Location |   Purpose   | Location |
          |------------------------+----------+-------------+----------|
          | 15-pin analog video    |   CN1    | VGA feature |   CN2    |
          | port                   |          | connector   |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                FACTORY CONFIGURED SETTINGS                 |
          |------------------------------------------------------------|
          |           Jumper           |            Setting            |
          |----------------------------+-------------------------------|
          |            JP0             |       Pins 1 & 2 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    WAIT STATE SETTINGS                     |
          |------------------------------------------------------------|
          |          Setting           |              JP1              |
          |----------------------------+-------------------------------|
          | » |       Zero wait        |       Pins 1 & 2 closed       |
          |---+------------------------+-------------------------------|
          |   |        One wait        |       Pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |           Setting            |             JP2             |
          |------------------------------+-----------------------------|
          | » |      IRQ2 disabled       |      Pins 1 & 2 closed      |
          |---+--------------------------+-----------------------------|
          |   |       IRQ2 enabled       |      Pins 2 & 3 closed      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |  Size  | Bank 0 - 5D/5H | Bank 1 - 5C/5G |    Bank 2 -     |
          |        |                |                |   5A/5B/5E/5F   |
          |--------+----------------+----------------+-----------------|
          | 256KB  |  (2) 256K x 4  |      NONE      |      NONE       |
          |--------+----------------+----------------+-----------------|
          | 512KB  |  (2) 256K x 4  |  (2) 256K x 4  |      NONE       |
          |--------+----------------+----------------+-----------------|
          | 1024KB |  (2) 256K x 4  |  (2) 256K x 4  |  (4) 256K x 4   |
          +------------------------------------------------------------+
