       # UNIDENTIFIED

          GP4000

          Category                     Video
          Video Types Supported        XVGA
          Video Processor              Tseng Labs
          Highest Resolution Supported 1024 x 768
          Data Bus Type                VESA local bus
          Memory Type                  DRAM
          Maximum Onboard Memory       2048KB

 (IMG) IMG 1


          +------------------------------------------------------------+

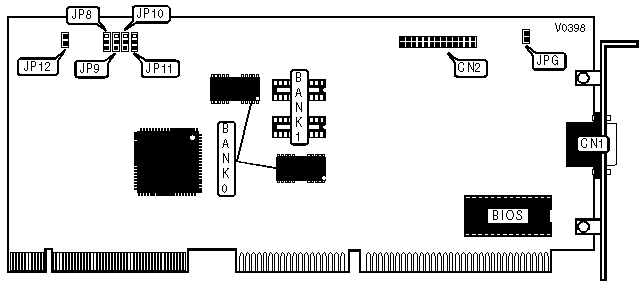

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |       Purpose        | Location |    Purpose    | Location |
          |----------------------+----------+---------------+----------|
          | 15 pin analog video  |   CN1    | Green feature |   JPG    |
          | port                 |          | connector     |          |
          |----------------------+----------+---------------+----------|
          | VESA Feature         |   CN2    |               |          |
          | connector            |          |               |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     WAIT STATE SELECT                      |
          |------------------------------------------------------------|
          |    Wait State    |        JP8         |        JP9         |
          |------------------+--------------------+--------------------|
          | »    |     2     | Pins 2 & 3 closed  | Pins 1 & 2 closed  |
          |------+-----------+--------------------+--------------------|
          |      |     1     | Pins 2 & 3 closed  | Pins 2 & 3 closed  |
          |------+-----------+--------------------+--------------------|
          |      |     3     | Pins 1 & 2 closed  | Pins 2 & 3 closed  |
          |------+-----------+--------------------+--------------------|
          |      |     4     | Pins 1 & 2 closed  | Pins 1 & 2 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          | Size |     JP10     |    JP11    |   BANK 0   |   BANK 1   |
          |------+--------------+------------+------------+------------|
          | 1MB  |  Pins 2 & 3  | Pins 1 & 2 | (2) 512K x |    NONE    |
          |      |    closed    |   closed   |     8      |            |
          |------+--------------+------------+------------+------------|
          | 2MB  |  Pins 2 & 3  | Pins 2 & 3 | (2) 512K x | (2) 512K x |
          |      |    closed    |   closed   |     8      |     8      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  BCM BOARD CONFIGURATION                   |
          |------------------------------------------------------------|
          |              Type               |           JP12           |
          |---------------------------------+--------------------------|
          |               BCM               |          Closed          |
          |---------------------------------+--------------------------|
          |             Non-BCM             |           Open           |
          |------------------------------------------------------------|
          | Note:The BCM setting is for mainboards that have the       |
          | "Green PC" feature.                                        |
          +------------------------------------------------------------+
