       # UNIDENTIFIED

          TVGA 8900CL

          Category                     Video
          Video Types Supported        XVGA
          Video Processor              8900CL
          Highest Resolution Supported 1024 x 768
          Data Bus Type                16-bit ISA
          Memory Type                  DRAM
          Maximum Onboard Memory       1024KB

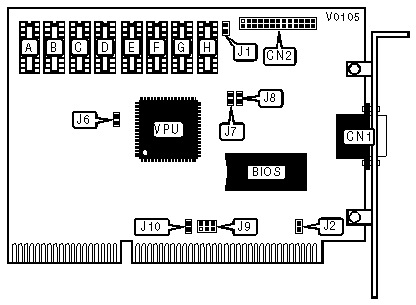

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Purpose         | Location |   Purpose   | Location |
          |------------------------+----------+-------------+----------|
          | 15-pin analog video    |   CN1    | VGA feature |   CN2    |
          | port                   |          | connector   |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 ZERO WAIT STATE SELECTION                  |
          |------------------------------------------------------------|
          |     Setting      |         J1         |         J2         |
          |------------------+--------------------+--------------------|
          | » |   Enabled    | Pins 2 & 3 closed  | Pins 1 & 2 closed  |
          |---+--------------+--------------------+--------------------|
          |   |   Disabled   | Pins 1 & 2 closed  | Pins 2 & 3 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    SCAN RATE SELECTION                     |
          |------------------------------------------------------------|
          |               Rate                |           J7           |
          |-----------------------------------+------------------------|
          | » |       Default scan rate       |         Closed         |
          |---+-------------------------------+------------------------|
          |   |            48.7Khz            |          Open          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                       BUS SELECTION                        |
          |------------------------------------------------------------|
          |       Bus        |     J6      |     J9      |     J10     |
          |------------------+-------------+-------------+-------------|
          | » |    16-bit    |    Open     |    Open     |   Closed    |
          |---+--------------+-------------+-------------+-------------|
          |   |    8-bit     |   Closed    |   Closed    |    Open     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |            BUS WIDTH AUTODETECT CONFIGURATION              |
          |------------------------------------------------------------|
          |              Setting              |           J8           |
          |-----------------------------------+------------------------|
          | »      |         Enabled          |          Open          |
          |--------+--------------------------+------------------------|
          |        |         Disabled         |         Closed         |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    DRAM CONFIGURATION                      |
          |------------------------------------------------------------|
          |    Size    |     D & H     |     C & G     |  A, B, E, F   |
          |------------+---------------+---------------+---------------|
          |   256KB    |   (2) 41256   |     None      |     None      |
          |------------+---------------+---------------+---------------|
          |   512KB    |   (2) 41256   |   (2) 41256   |     None      |
          |------------+---------------+---------------+---------------|
          |   1024KB   |   (2) 41256   |   (2) 41256   |   (2) 41256   |
          +------------------------------------------------------------+
