       # PARADISE SYSTEMS, INC.

          PARADISE PVC-4 (REV.1)

          Card Type                    Video card
          Video Chip Set               Unidentified
          Maximum Video Memory         Unidentified
          Video Types Supported        Monochrome, CGA
          Highest Resolution Supported Unidentified
          Data Bus                     8-bit ISA

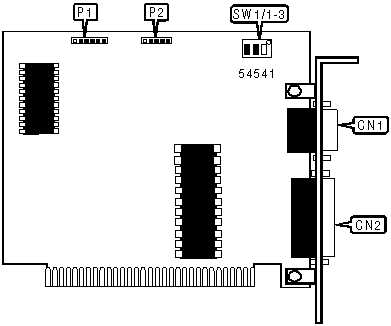

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |         Function         | Label |    Function     | Label |
          |--------------------------+-------+-----------------+-------|
          | 9 pin digital video port |  CN1  | Parallel Port   |  CN2  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function               | Label |   Setting    |
          |-------------------------------------+-------+--------------|
          | » | Factory configured - do not     |  P1   | unidentified |
          |   | alter                           |       |              |
          |---+---------------------------------+-------+--------------|
          | » | Factory configured - do not     |  P2   | unidentified |
          |   | alter                           |       |              |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   DISPLAY CONFIGURATION                    |
          |------------------------------------------------------------|
          |       Type        |                 SW1/1                  |
          |-------------------+----------------------------------------|
          |    Monochrome     |                   On                   |
          |-------------------+----------------------------------------|
          |        CGA        |                  Off                   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      SWITCH SETTINGS                       |
          |------------------------------------------------------------|
          |        Condition         |     SW1/2      |     SW1/3      |
          |--------------------------+----------------+----------------|
          |         Disabled         |       On       |       On       |
          |--------------------------+----------------+----------------|
          |       LPT2 (278h)        |       On       |      Off       |
          |--------------------------+----------------+----------------|
          |       LPT1 (278h)        |      Off       |       On       |
          |--------------------------+----------------+----------------|
          |       LPT1 (3BCh)        |      Off       |      Off       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               MISCELLANEOUS TECHNICAL NOTES                |
          |------------------------------------------------------------|
          | Switch 1 may be mounted in either direction; this will     |
          | change the position of On and Off, but not the order of    |
          | the switches.                                              |
          +------------------------------------------------------------+
