       # PRISM IMAGING SYSTEMS

          PRISM BASIC

          Card Type                    Video card
          Video Chip Set               Prism Imaging Systems
          Maximum Video Memory         256KB DRAM
          Video Types Supported        Monochrome, CGA, EGA, VGA
          Highest Resolution Supported 1024 x 768
          Data Bus                     8-bit ISA

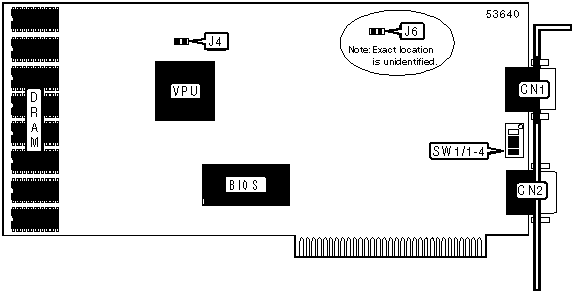

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |       Function       | Label |      Function       | Label |
          |----------------------+-------+---------------------+-------|
          | 15-pin analog video  |  CN1  | 9-pin digital video |  CN2  |
          | port                 |       | port                |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Function                | Label | Position  |
          |----------------------------------------+-------+-----------|
          | » | Color monitor                      |  J4   |  Closed   |
          |---+------------------------------------+-------+-----------|
          |   | Monochrome monitor                 |  J4   |   Open    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   POWER-UP MONITOR MODE                    |
          |------------------------------------------------------------|
          |   Mode    |   SW1/1    |   SW1/2   |   SW1/3   |   SW1/4   |
          |-----------+------------+-----------+-----------+-----------|
          |    VGA    |     On     |    On     |    On     |    On     |
          |-----------+------------+-----------+-----------+-----------|
          |    CGA    |     On     |    On     |    Off    |    On     |
          |-----------+------------+-----------+-----------+-----------|
          |    MDA    |    Off     |    On     |    Off    |    On     |
          |-----------+------------+-----------+-----------+-----------|
          |    EGA    |     On     |    Off    |    Off    |    On     |
          |-----------+------------+-----------+-----------+-----------|
          |    MGA    |    Off     |    Off    |    Off    |    On     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    WAIT STATE SELECTION                    |
          |------------------------------------------------------------|
          |             Setting             |            J6            |
          |---------------------------------+--------------------------|
          | »     |            0            |            On            |
          |-------+-------------------------+--------------------------|
          |       |            1            |           Off            |
          +------------------------------------------------------------+
