          PARADISE OEM 6 EGA

          Card Type                   Video card
          Video Chip Set              Unidentified
          Highest Resolution          640 x 480
          Supported
          Maximum Video Memory        256KB DRAM (location unidentified)
          Data Bus                    8-bit ISA
          Video Types Supported       EGA/CGA

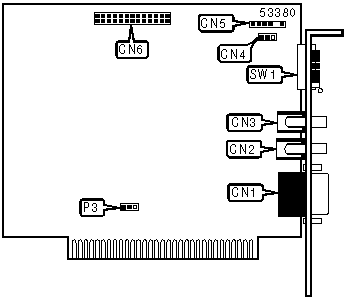

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |       Function       | Label |      Function       | Label |
          |----------------------+-------+---------------------+-------|
          | 9-pin analog video   |  CN1  | Light pen connector |  CN5  |
          | connector            |       |                     |       |
          |----------------------+-------+---------------------+-------|
          | RCA connector        |  CN2  | Feature connector   |  CN6  |
          |----------------------+-------+---------------------+-------|
          | RCA connector        |  CN3  |                     |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Function                 | Label | Position |
          |-----------------------------------------+-------+----------|
          | » | 480 Line modes supported            |  CN4  | Pin 1-2  |
          |---+-------------------------------------+-------+----------|
          |   | Feature connector accessories       |  CN4  | Pin 2-3  |
          |   | supported                           |       |          |
          |---+-------------------------------------+-------+----------|
          | » | I/O Address 3xxH                    |  P3   | Pin 2-3  |
          |---+-------------------------------------+-------+----------|
          |   | I/O Address 2xxH                    |  P3   | Pin 1-2  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |         DISPLAY CONFIGURATION (OEM 6 EGA PRIMARY)          |
          |------------------------------------------------------------|
          |   Primary   |  Secondary   | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
          |-------------+--------------+-------+-------+-------+-------|
          | Monochrome  | Color, 80x25 |  Off  |  Off  |  On   |  Off  |
          |-------------+--------------+-------+-------+-------+-------|
          | Monochrome  | Color, 40x25 |  On   |  Off  |  On   |  Off  |
          |-------------+--------------+-------+-------+-------+-------|
          |    Color    |  Monochrome  |  On   |  Off  |  Off  |  On   |
          |-------------+--------------+-------+-------+-------+-------|
          |    Color    |  Monochrome  |  Off  |  Off  |  Off  |  On   |
          |-------------+--------------+-------+-------+-------+-------|
          |  Enhanced   |  Monochrome  |  On   |  On   |  On   |  Off  |
          |-------------+--------------+-------+-------+-------+-------|
          |  Enhanced   |  Monochrome  |  Off  |  On   |  On   |  Off  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |        DISPLAY CONFIGURATION (OEM 6 EGA SECONDARY)         |
          |------------------------------------------------------------|
          |   Primary   |  Secondary   | SW1/1 | SW1/2 | SW1/3 | SW1/4 |
          |-------------+--------------+-------+-------+-------+-------|
          |    Color    |  Monochrome  |  On   |  On   |  On   |  On   |
          |-------------+--------------+-------+-------+-------+-------|
          |    Color    |  Monochrome  |  Off  |  On   |  On   |  On   |
          |-------------+--------------+-------+-------+-------+-------|
          |  Enhanced   |  Monochrome  |  On   |  Off  |  On   |  On   |
          |-------------+--------------+-------+-------+-------+-------|
          |  Enhanced   |  Monochrome  |  Off  |  Off  |  On   |  On   |
          |-------------+--------------+-------+-------+-------+-------|
          | Monochrome  | Color, 40x25 |  On   |  On   |  Off  |  On   |
          |-------------+--------------+-------+-------+-------+-------|
          | Monochrome  | Color, 80x25 |  Off  |  On   |  Off  |  On   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |              DISPLAY SELECTION (AUTO SWITCH)               |
          |------------------------------------------------------------|
          |            Autoswitch Option             |      SW1/5      |
          |------------------------------------------+-----------------|
          |                 Disabled                 |      Open       |
          |------------------------------------------+-----------------|
          |                 Enabled                  |     Closed      |
          +------------------------------------------------------------+
