       # QUADRANT INTERNATIONAL, INC.

          BUSTER

          Card Type                    Video capture/Tuner card
          Video Chip Set               Unidentified
          Maximum Video Memory         Unidentified
          Video Types Supported        XVGA
          Highest Resolution Supported 1600 x 1200
          Data Bus                     32-bit PCI

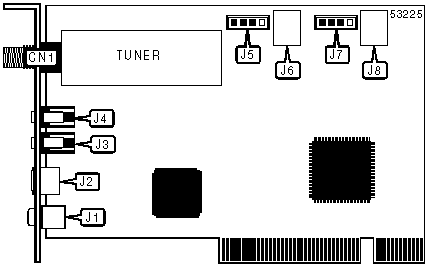

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |       Function       | Label |      Function       | Label |
          |----------------------+-------+---------------------+-------|
          | Coax connector       |  CN1  | Audio in (internal) |  J5   |
          |----------------------+-------+---------------------+-------|
          | Composite in         |  J1   | Audio in (internal) |  J6   |
          |----------------------+-------+---------------------+-------|
          | S-video in           |  J2   | Audio out           |  J7   |
          |                      |       | (internal)          |       |
          |----------------------+-------+---------------------+-------|
          | Audio in (external)  |  J3   | Audio out           |  J8   |
          |                      |       | (internal)          |       |
          |----------------------+-------+---------------------+-------|
          | Audio out (external) |  J4   |                     |       |
          +------------------------------------------------------------+
