       # PROLINK COMPUTER, INC.

          MVGA-T9660PCI

          Category                     Video
          Video Types Supported        XVGA
          Video Processor              Trident
          Highest Resolution Supported 1600 x 1200
          Data Bus Type                32-bit PCI
          Memory Type                  DRAM
          Maximum Onboard Memory       2MB

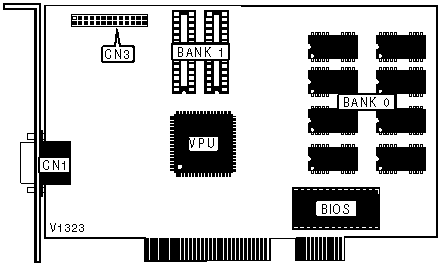

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Purpose         | Location |   Purpose   | Location |
          |------------------------+----------+-------------+----------|
          | 15-pin analog video    |   CN1    | VGA feature |   CN3    |
          | port                   |          | connector   |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |      Memory      |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |       1MB        |    (8) 256K x4     |        None        |
          |------------------+--------------------+--------------------|
          |       2MB        |    (8) 256K x4     |   (2) 256K x 16    |
          +------------------------------------------------------------+
