       # PROLINK COMPUTER, INC.

          MVGA-WDC33

          Category                     Video
          Video Type                   XVGA
          Video Processor              Western Digital
          Highest Resolution Supported 1280 x 1024
          Data Bus Type                16-bit VESA
          Memory Type                  DRAM
          Maximum Onboard Memory       2MB

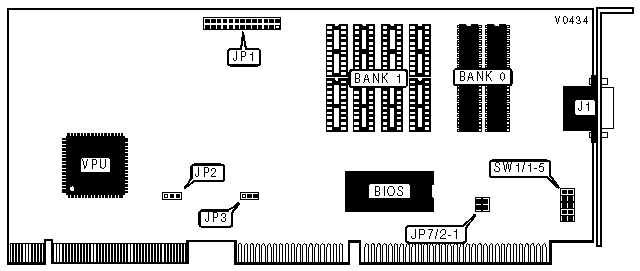

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Purpose        | Location |   Purpose    | Location |
          |-----------------------+----------+--------------+----------|
          | 15-pin analog video   |    J1    | VESA Feature |   JP1    |
          | port                  |          | connector    |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DATA/COMMAND LINE                      |
          |------------------------------------------------------------|
          |          Setting           |              JP2              |
          |----------------------------+-------------------------------|
          | » |        Disabled        |       Pins 1 & 2 closed       |
          |---+------------------------+-------------------------------|
          |   |        Enabled         |       Pins 2 & 3 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                        CPU MATCHING                        |
          |------------------------------------------------------------|
          |          Setting           |              JP3              |
          |----------------------------+-------------------------------|
          | » |         80486          |       Pins 2 & 3 closed       |
          |---+------------------------+-------------------------------|
          |   |         80386          |       Pins 1 & 2 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |            MODE 3, 12, 5E, AND 5F REFRESH RATES            |
          |------------------------------------------------------------|
          |             Setting              |          JP7/1          |
          |----------------------------------+-------------------------|
          | »        |         72Hz          |         Closed          |
          |----------+-----------------------+-------------------------|
          |          |         60Hz          |          Open           |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      ZERO WAIT STATE                       |
          |------------------------------------------------------------|
          |             Setting             |          JP7/2           |
          |---------------------------------+--------------------------|
          | » |          Disabled           |           Open           |
          |---+-----------------------------+--------------------------|
          |   |           Enabled           |          Closed          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  800 X 600 REFRESH RATES                   |
          |------------------------------------------------------------|
          |            Refresh            |    SW1/1     |    SW1/2    |
          |-------------------------------+--------------+-------------|
          | » |    56Hz Non-interlaced    |     Open     |    Open     |
          |---+---------------------------+--------------+-------------|
          |   |    60Hz Non-interlaced    |     Open     |   Closed    |
          |---+---------------------------+--------------+-------------|
          |   |    72Hz Non-interlaced    |    Closed    |    Open     |
          |---+---------------------------+--------------+-------------|
          |   |    56Hz Non-interlaced    |    Closed    |   Closed    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  1024 X 768 REFRESH RATES                  |
          |------------------------------------------------------------|
          |            Refresh            |    SW1/3     |    SW1/4    |
          |-------------------------------+--------------+-------------|
          | » |      87Hz Interlaced      |     Open     |    Open     |
          |---+---------------------------+--------------+-------------|
          |   |    60Hz Non-interlaced    |     Open     |   Closed    |
          |---+---------------------------+--------------+-------------|
          |   |    70Hz Non-interlaced    |    Closed    |    Open     |
          |---+---------------------------+--------------+-------------|
          |   |    72Hz Non-interlaced    |    Closed    |   Closed    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                       FONT SELECTION                       |
          |------------------------------------------------------------|
          |              Setting              |         SW1/5          |
          |-----------------------------------+------------------------|
          | » |         Standard font         |          Open          |
          |---+-------------------------------+------------------------|
          |   |           TUV font            |         Closed         |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 VIDEO MEMORY CONFIGURATION                 |
          |------------------------------------------------------------|
          |      Size       |       Bank 0       |       Bank 1        |
          |-----------------+--------------------+---------------------|
          | » |     1MB     |    (4) 256K x 8    |        NONE         |
          |---+-------------+--------------------+---------------------|
          |   |     2MB     |    (4) 256K x 8    |    (8) 256K x 4     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    MISCELLANEOUS NOTES                     |
          |------------------------------------------------------------|
          |         Bank 0 may be configured as (2) 256K x 16          |
          +------------------------------------------------------------+
