       # LUCKY STAR TECHNOLOGY CO., LTD.

          S-6326

          Card Type                    Video card
          Video Chip Set               SIS
          Maximum Video Memory         4MB EDO VRAM
          Video Types Supported        Monochrome, CGA, EGA, VGA, XVGA
          Highest Resolution Supported 1600 x 1200
          Data Bus                     AGP

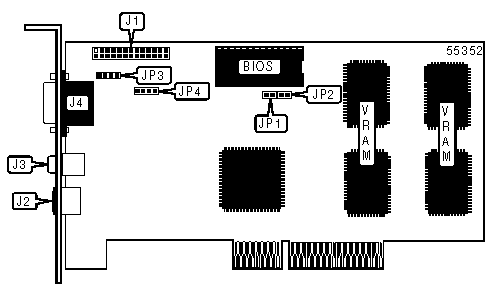

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |     Function      | Label |        Function        | Label |
          |-------------------+-------+------------------------+-------|
          | Feature connector |  J1   | Audio/video terminal   |  J3   |
          | (VGA)             |       |                        |       |
          |-------------------+-------+------------------------+-------|
          | S-video out       |  J2   | 15-pin analog video    |  J4   |
          |                   |       | port                   |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |       Function       |      Label      |     Position      |
          |----------------------+-----------------+-------------------|
          | NTSC video input     |       JP1       |       Open        |
          |----------------------+-----------------+-------------------|
          | PAL video input      |       JP1       |      Closed       |
          |----------------------+-----------------+-------------------|
          | INTA disabled        |       JP2       |       Open        |
          |----------------------+-----------------+-------------------|
          | INTA enabled         |       JP2       |      Closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |             VIDEO MEMORY JUMPER CONFIGURATION              |
          |------------------------------------------------------------|
          |       Function       |       JP3        |       JP4        |
          |----------------------+------------------+------------------|
          |     2-cycle EDO      |       Open       |      Closed      |
          |----------------------+------------------+------------------|
          |     1-cycle EDO      |      Closed      |       Open       |
          |----------------------+------------------+------------------|
          |       FP DRAM        |      Closed      |      Closed      |
          +------------------------------------------------------------+
