       # LEADTEK RESEARCH, INC.

          SMART TV

          Video Chip Set               Unidentified
          Maximum Video Memory         Unidentified
          Video Types Supported        Unidentified
          Highest Resolution Supported Unidentified
          Data Bus                     External

 (IMG) IMG 1


          +------------------------------------------------------------+

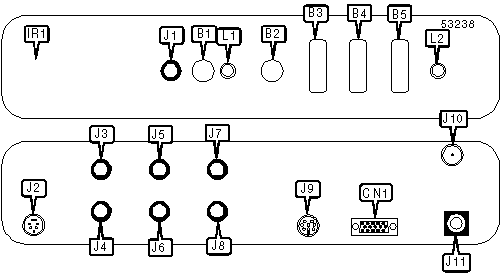

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |      Function       | Label |       Function       | Label |
          |---------------------+-------+----------------------+-------|
          | PC/TV button        |  B1   | Video output         |  J3   |
          |---------------------+-------+----------------------+-------|
          | Video Source select |  B2   | Video input          |  J4   |
          | button              |       |                      |       |
          |---------------------+-------+----------------------+-------|
          | Channel up/down     |  B3   | Audio output - right |  J5   |
          | button              |       | channel              |       |
          |---------------------+-------+----------------------+-------|
          | Volume up/down      |  B4   | Audio input - right  |  J6   |
          | button              |       | channel              |       |
          |---------------------+-------+----------------------+-------|
          | Power button        |  B5   | Audio output - left  |  J7   |
          |                     |       | channel              |       |
          |---------------------+-------+----------------------+-------|
          | 15-pin analog video |  CN1  | Audio input - left   |  J8   |
          | port                |       | channel              |       |
          |---------------------+-------+----------------------+-------|
          | External IR sensor  |  IR1  | TV antenna/cable     |  J9   |
          | connector           |       | connector            |       |
          |---------------------+-------+----------------------+-------|
          | Headphone jack      |  J1   | VGA cable connector  |  J10  |
          |---------------------+-------+----------------------+-------|
          | S-video output      |  J2   | DC 9V input          |  J11  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DIAGNOSTIC LED(S)                      |
          |------------------------------------------------------------|
          | LED  |    Color     | Status |          Condition          |
          |------+--------------+--------+-----------------------------|
          |  L1  | Unidentified |   On   |           TV mode           |
          |------+--------------+--------+-----------------------------|
          |  L1  | Unidentified |  Off   |         TV mode off         |
          |------+--------------+--------+-----------------------------|
          |  L2  |     Red      |   On   |          Power on           |
          |------+--------------+--------+-----------------------------|
          |  L2  |    Green     |   On   |           Standby           |
          |------+--------------+--------+-----------------------------|
          |  L2  |     N/A      |  Off   |          Power off          |
          +------------------------------------------------------------+
