       # KYE INTERNATIONAL CORPORATION

          HI VIDEO

          Card Type          Video capture board
          Video Chip Set     5AA9051, 82C9001A
          Highest Resolution 640 x 480
          Supported
          Maximum Video      VRAM (The exact amount of memory is
          Memory             unidentified)
          Data Bus           16-bit ISA
          Video Types        XVGA
          Supported

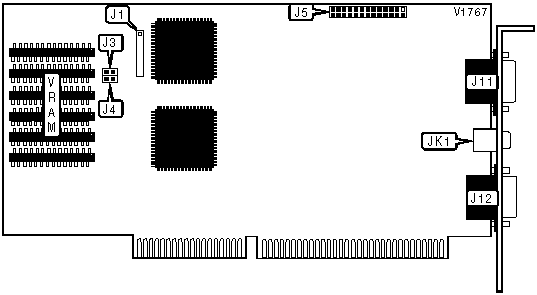

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |       Function        | Label |      Function      | Label |
          |-----------------------+-------+--------------------+-------|
          | I2C bus connector     |  J1   | Video in           |  J12  |
          |-----------------------+-------+--------------------+-------|
          | VGA feature connector |  J5   | Video source 1     |  JK1  |
          |-----------------------+-------+--------------------+-------|
          | Video out             |  J11  |                    |       |
          |------------------------------------------------------------|
          | Note: The exact # of pins on J1 is unidentified.           |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  VRAM CHIP CONFIGURATION                   |
          |------------------------------------------------------------|
          |        Chip        |        J3         |        J4         |
          |--------------------+-------------------+-------------------|
          |    TI TMS44C251    |      Closed       |      Closed       |
          |--------------------+-------------------+-------------------|
          |       Other        |       Open        |       Open        |
          +------------------------------------------------------------+
