       # JATON CORPORATION

          JAX-8212

          Category                     Video
          Video Types Supported        XVGA
          Video Processor              8900C
          Highest Resolution Supported 1024 x 768
          Data Bus Type                16-bit ISA
          Memory Type                  DRAM
          Maximum Onboard Memory       512KB

 (IMG) IMG 1


          +------------------------------------------------------------+

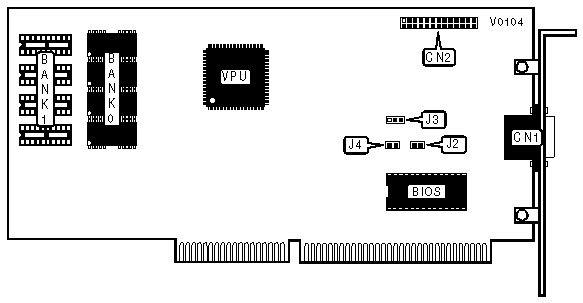

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Purpose         | Location |   Purpose   | Location |
          |------------------------+----------+-------------+----------|
          | 15-pin analog video    |   CN1    | VGA feature |   CN2    |
          | port                   |          | connector   |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    SCAN RATE SELECTION                     |
          |------------------------------------------------------------|
          |               Rate                |           J2           |
          |-----------------------------------+------------------------|
          | » |       Default scan rate       |         Closed         |
          |---+-------------------------------+------------------------|
          |   |            48.7Khz            |          Open          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               BUS SIZE DETECT CONFIGURATION                |
          |------------------------------------------------------------|
          |              Setting              |           J4           |
          |-----------------------------------+------------------------|
          | » |          Autodetect           |          Open          |
          |---+-------------------------------+------------------------|
          |   |      Standard interface       |         Closed         |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |             FACTORY CONFIGURED - DO NOT ALTER              |
          |------------------------------------------------------------|
          |           Jumper           |           Position            |
          |----------------------------+-------------------------------|
          |             J3             |       Pins 1 & 2 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    DRAM CONFIGURATION                      |
          |------------------------------------------------------------|
          |       Size       |       Bank 0       |       Bank 1       |
          |------------------+--------------------+--------------------|
          |      256KB       |     (2) 41256      |        None        |
          |------------------+--------------------+--------------------|
          |      512KB       |     (2) 41256      |     (2) 41256      |
          +------------------------------------------------------------+
