       # FONG KAI INDUSTRIES CO.

          S3-765

          Card Type                    Video card
          Video Chip Set               S3
          Highest Resolution Supported 1600 x 1200
          Maximum Video Memory         2MB DRAM (EDO supported)
          Data Bus                     64-bit PCI
          Video Types Supported        XVGA

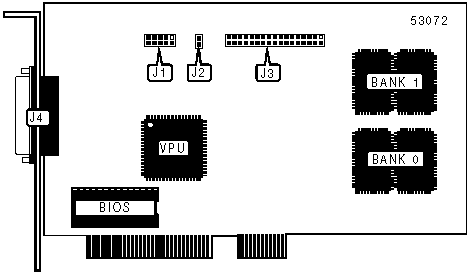

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |    Function     | Label |         Function         | Label |
          |-----------------+-------+--------------------------+-------|
          | Unidentified    |  J1   | 15-pin analog video port |  J4   |
          |-----------------+-------+--------------------------+-------|
          | LPB             |  J3   |                          |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Function               |  Label   | Position  |
          |-------------------------------------+----------+-----------|
          | IRQ 2 enabled                       |    J2    |  Closed   |
          |-------------------------------------+----------+-----------|
          | IRQ 2 disabled                      |    J2    |   Open    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |        Size        |      Bank 0       |      Bank 1       |
          |--------------------+-------------------+-------------------|
          |        1MB         |  (2) 256KB X 16   |       None        |
          |--------------------+-------------------+-------------------|
          |        2MB         |  (2) 256KB X 16   |  (2) 256KB X 16   |
          +------------------------------------------------------------+
