       # DIAMOND FLOWER, INC.

          WG-9000P

          Card Type                    Video card
          Video Chip Set               Weitek
          Maximum Video Memory         2MB VRAM
          Video Types Supported        VGA
          Highest Resolution Supported 1280 x 1024
          Data Bus                     32-bit PCI

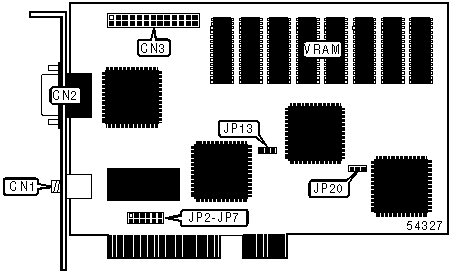

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |          Function           | Label |   Function   | Label |
          |-----------------------------+-------+--------------+-------|
          | Speaker/line out            |  CN1  | VESA feature |  CN3  |
          |                             |       | connector    |       |
          |-----------------------------+-------+--------------+-------|
          | 15-pin analog video         |  CN2  |              |       |
          | connector                   |       |              |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Function                | Label | Position  |
          |----------------------------------------+-------+-----------|
          | » | Factory configured – do not alter  |  JP7  |    On     |
          |---+------------------------------------+-------+-----------|
          | » | Factory configured – do not alter  |  JP8  |    On     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  PCI INTERRUPT SELECTION                   |
          |------------------------------------------------------------|
          | Setting |  JP2   |  JP3   |  JP4   |  JP5  |  JP6  |  JP7  |
          |---------+--------+--------+--------+-------+-------+-------|
          |  INTA   | Closed |  Open  |  Open  | Open  | Open  | Open  |
          |---------+--------+--------+--------+-------+-------+-------|
          |  INTB   |  Open  | Closed |  Open  | Open  | Open  | Open  |
          |---------+--------+--------+--------+-------+-------+-------|
          |  INTC   |  Open  |  Open  | Closed | Open  | Open  | Open  |
          |---------+--------+--------+--------+-------+-------+-------|
          |  INTD   |  Open  |  Open  |  Open  |Closed | Open  | Open  |
          |---------+--------+--------+--------+-------+-------+-------|
          | PERR #  |  Open  |  Open  |  Open  | Open  |Closed | Open  |
          |---------+--------+--------+--------+-------+-------+-------|
          | SERR #  |  Open  |  Open  |  Open  | Open  | Open  |Closed |
          +------------------------------------------------------------+
