       # CARDEXPERT TECHNOLOGY, INC.

          S3 TRIO64 V+

          Category                     Video
          Video Types Supported        XVGA
          Video Processor              S3 Trio64 V+
          Highest Resolution Supported 1600 x 1200
          Data Bus Type                32-bit PCI
          Memory Type                  DRAM
          Maximum Onboard Memory       4MB

 (IMG) IMG 1


          +------------------------------------------------------------+

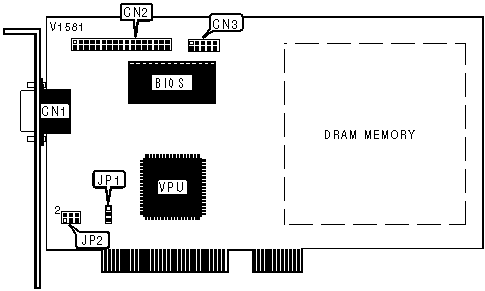

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |         Purpose         | Location |  Purpose   | Location |
          |-------------------------+----------+------------+----------|
          | 15-pin analog video     |   CN1    | 10-pin     |   CN3    |
          | port                    |          | connector  |          |
          |-------------------------+----------+------------+----------|
          | VGA feature             |   CN2    |            |          |
          | connector/local         |          |            |          |
          | peripheral bus          |          |            |          |
          | connector               |          |            |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  INTERRUPT CONFIGURATION                   |
          |------------------------------------------------------------|
          |          IRQ 2/9           |              JP1              |
          |----------------------------+-------------------------------|
          | » |        Disabled        |       Pins 2 & 3 closed       |
          |---+------------------------+-------------------------------|
          |   |        Enabled         |       Pins 1 & 2 closed       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 DDC FUNCTION CONFIGURATION                 |
          |------------------------------------------------------------|
          |          Setting           |              JP2              |
          |----------------------------+-------------------------------|
          | » |        Disabled        |   Pins 3 & 5, 4 & 6 closed    |
          |---+------------------------+-------------------------------|
          |   |        Enabled         |   Pins 1 & 3, 2 & 4 closed    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     DRAM CONFIGURATION                     |
          |------------------------------------------------------------|
          |   Size   |      Bank 0       |    Bank 1    |    Bank 2    |
          |----------+-------------------+--------------+--------------|
          |   1MB    |   (2) 256K x 16   |     NONE     |     NONE     |
          |----------+-------------------+--------------+--------------|
          |   2MB    |   (2) 256K x 16   |  (2) 256K x  |     NONE     |
          |          |                   |      16      |              |
          |----------+-------------------+--------------+--------------|
          |   4MB    |   (2) 256K x 16   |  (2) 256K x  |  (4) 256K x  |
          |          |                   |      16      |      16      |
          |------------------------------------------------------------|
          | Note: Relative location of Bank 0, Bank 1 & Bank 2 is      |
          | unidentified by the manufacturer.                          |
          +------------------------------------------------------------+
