# APPIAN TECHNOLOGY
STANDARD JERONIMO J1
Card Type Video card
Video Chip Set Cirrus Logic
Video Types Supported VGA, XVGA
Highest Resolution Supported 1600 x 1200
Maximum Video Memory Unidentified
Data Bus 64-bit PCI

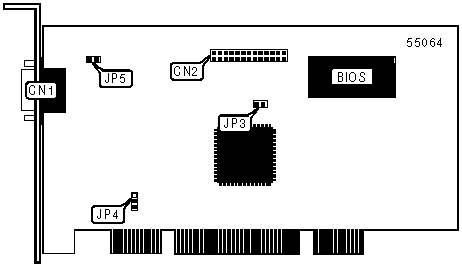

(IMG) IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|---------------------+-------+----------------------+-------|
| 15-pin analog video | CN1 | VESA feature | CN2 |
| port | | connector | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Function | Label | Position |
|----------------------------------+-------+-----------------|
| | VGA enabled | JP3 | Open |
|---+------------------------------+-------+-----------------|
| | VGA disabled | JP3 | Closed |
|---+------------------------------+-------+-----------------|
| ยป | Interrupt disabled | JP4 | Pins 1 & 2 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | Interrupt enabled | JP4 | Pins 2 & 3 |
| | | | closed |
|---+------------------------------+-------+-----------------|
| | CSYNC compatibility enabled | JP5 | Closed |
|---+------------------------------+-------+-----------------|
| | CSYNC compatibility disabled | JP5 | Open |
+------------------------------------------------------------+
