       # ZOLTRIX, INC.

          FM-HSP56P

          Card Type              Modem, Fax
          Chip Set               PCtel
          I/O Options            Line in (RJ-11), line out (RJ-11)
          Maximum Modem Rate     56Kbps
          Maximum Fax Rate       14.4Kbps
          Data Modulation        Bell 103A/212A
          Protocol
                                 ITU-T V.21, V.22, V.22bis, V.23, V.32,
                                 V.32bis, V.34, V.34bis

                                 K56Flex
          Fax Modulation         ITU-T V.17, V.21CH2, V.27ter, V.29
          Protocol
          Error                  MNP5, V.42, V.42bis
          Correction/Compression
          Fax Class              Class I & II
          Data Bus               16-bit ISA

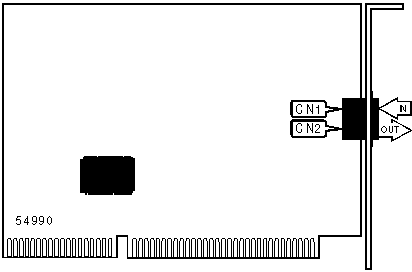

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Function        |  Label   |   Function   |  Label  |
          |------------------------------------------------------------|
          | Line in                     |    CN1     | Line out | CN2  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   SUPPORTED COMMAND SET                    |
          |------------------------------------------------------------|
          |                     Basic AT Commands                      |
          |------------------------------------------------------------|
          | AT, A/                                                     |
          |------------------------------------------------------------|
          | A, B, D, E, H, I, L, M, N, O, P, Q, T, V, W, X, Y, Z       |
          |------------------------------------------------------------|
          | &C, &D, &F, &G, &K, &P, &S, &T, &V, &W, &Y, &Z             |
          |------------------------------------------------------------|
          |                    Extended AT Commands                    |
          |------------------------------------------------------------|
          | \A, \B, \G, \K, \L, \N                                     |
          |------------------------------------------------------------|
          | %C, %E, %L                                                 |
          |------------------------------------------------------------|
          |                        S Registers                         |
          |------------------------------------------------------------|
          | S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12,     |
          | S18, S25, S30, S32, S33, S34, S35, S37,                    |
          |------------------------------------------------------------|
          | S38, S86, S91                                              |
          |------------------------------------------------------------|
          | Note: See MHI Help File for full command documentation.    |
          +------------------------------------------------------------+

                             Proprietary AT Commands

          +------------------------------------------------------------+
          |                       TRELLIS CODING                       |
          |------------------------------------------------------------|
          | Type:        | Configuration                               |
          |--------------+---------------------------------------------|
          | Format:      | AT [cmds] &Un [cmds]                        |
          |--------------+---------------------------------------------|
          | Description: | Enables/disables trellis coding             |
          +------------------------------------------------------------+

                               Extended AT Commands

          +------------------------------------------------------------+
          |                     CPU USAGE SETTINGS                     |
          |------------------------------------------------------------|
          | Type:        | Configuration                               |
          |--------------+---------------------------------------------|
          | Format:      | AT [cmds] %Nn [cmds]                        |
          |--------------+---------------------------------------------|
          | Description: | Selects the total usage of the CPU while    |
          |              | operating the modem                         |
          +------------------------------------------------------------+

                              S(Status) - Registers

          +------------------------------------------------------------+
          |                       V.34 DATA RATE                       |
          |------------------------------------------------------------|
          | Type:        | Register                                    |
          |--------------+---------------------------------------------|
          | Format:      | AT [cmds] S34=n [cmds]                      |
          |--------------+---------------------------------------------|
          | Range:       | Unidentified                                |
          |--------------+---------------------------------------------|
          | Unit:        | Unidentified                                |
          |--------------+---------------------------------------------|
          | Description: | Determines the maximum bit rate while using |
          |              | V.34 compression. Default is S34=11         |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      V.34 SYMBOL RATE                      |
          |------------------------------------------------------------|
          | Type:        | Register                                    |
          |--------------+---------------------------------------------|
          | Format       | AT [cmds] S35=n [cmds]                      |
          |--------------+---------------------------------------------|
          | Description: | Determines the minimum baud rate while      |
          |              | using V.34 compression. Default is S35=0    |
          +------------------------------------------------------------+
