       # UNIDENTIFIED

          INTERNAL 2400I

          Card Type                    Modem
          Chip Set                     Unidentified
          Maximum Data Rate            2400bps
          Data Bus                     8-bit ISA
          Data Modulation Protocol     Unidentified
          Error Correction/Compression Unidentified

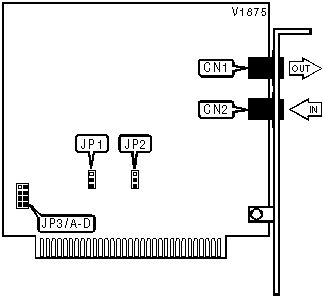

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Function        |  Label   |   Function   |  Label  |
          |------------------------------------------------------------|
          | Line out                    |    CN1     | Line in  | CN2  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                 Setting                 | Label | Position |
          |-----------------------------------------+-------+----------|
          | Factory configured - do not alter       | JP3/C |   N/A    |
          |-----------------------------------------+-------+----------|
          | Factory configured - do not alter       | JP3/D |   N/A    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    SERIAL PORT ADDRESS                     |
          |------------------------------------------------------------|
          |     Setting      |        JP1         |        JP2         |
          |------------------+--------------------+--------------------|
          |   COM1 (3F8h)    | Pins 2 & 3 closed  | Pins 2 & 3 closed  |
          |------------------+--------------------+--------------------|
          |   COM2 (2F8h)    | Pins 1 & 2 closed  | Pins 2 & 3 closed  |
          |------------------+--------------------+--------------------|
          |   COM3 (3E8h)    | Pins 2 & 3 closed  | Pins 1 & 2 closed  |
          |------------------+--------------------+--------------------|
          |   COM4 (2E8h)    | Pins 1 & 2 closed  | Pins 1 & 2 closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                         INTERRUPT                          |
          |------------------------------------------------------------|
          |      Setting       |       JP3/A       |       JP3/B       |
          |--------------------+-------------------+-------------------|
          |         3          |      Closed       |       Open        |
          |--------------------+-------------------+-------------------|
          |         4          |       Open        |      Closed       |
          +------------------------------------------------------------+
