       # ZOOM TELEPHONICS

          VOICE/FAX/DATA MODEM

          Modem Type          Data/Fax/Voice
          Data Rate           2400bps
          Data Bus            8-bit ISA
          Class               Class II
          Modulation Protocol V.42bis

 (IMG) IMG 1




          +------------------------------------------------------------+

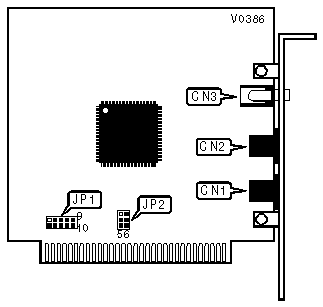

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |       Purpose       | Location  |  Purpose  |   Location   |
          |------------------------------------------------------------|
          | Line in         |    CN1     | External Speaker |   CN3    |
          |------------------------------------------------------------|
          | Line out (to phone)       |    CN2    |            |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                       PORT SETTINGS                        |
          |------------------------------------------------------------|
          |     COM/IRQ      |        JP1         |        JP2         |
          |------------------+--------------------+--------------------|
          |   í COM1/IRQ4    | Pins 3 & 4 closed  | Pins 3 & 5, 4 & 6  |
          |                  |                    |       closed       |
          |------------------+--------------------+--------------------|
          |    COM2/IRQ3     | Pins 1 & 2 closed  | Pins 2 & 4, 3 & 5  |
          |                  |                    |       closed       |
          |------------------+--------------------+--------------------|
          |    COM3/IRQ4     |  Pins 3 &4 closed  | Pins 1 & 3, 4 & 6  |
          |                  |                    |       closed       |
          |------------------+--------------------+--------------------|
          |    COM4/IRQ3     | Pins 1 & 2 closed  | Pins 1 & 3, 2 & 4  |
          |                  |                    |       closed       |
          |------------------+--------------------+--------------------|
          | COM5 (COM3/IRQ2) | Pins 9 & 10 closed | Pins 1 & 3, 4 & 6  |
          |                  |                    |       closed       |
          |------------------+--------------------+--------------------|
          | COM6 (COM4/IRQ2) | Pins 9 & 10 closed | Pins 1 & 3, 2 & 4  |
          |                  |                    |       closed       |
          |------------------+--------------------+--------------------|
          | COM7 (COM3/IRQ5) | Pins 5 & 6 closed  | Pins 1 & 3, 4 & 6  |
          |                  |                    |       closed       |
          |------------------+--------------------+--------------------|
          | COM8 (COM4/IRQ5) | Pins 5 & 6 closed  | Pins 1 & 3, 2 & 4  |
          |                  |                    |       closed       |
          +------------------------------------------------------------+
