# SIIG, INC.
DASH 14.4I FAX/MODEM INTERNAL
Card Type Fax, Modem (asynchronous)
Chip Set Unidentified
Maximum Data Rate 14.4Kbps
Maximum Fax Rate 14.4Kbps
Data Bus 8-bit ISA
Fax Class Class I
Data Modulation Bell 103/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis
Fax Modulation ITU-T V.17, V.21CH2, V.27ter, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression

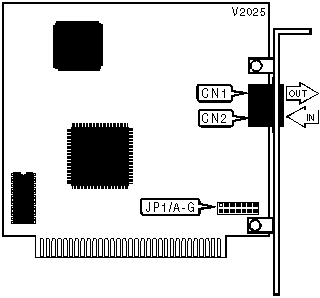

(IMG) IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Phone line out | CN1 | Phone line in | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS |
|------------------------------------------------------------|
| Setting | JP1/D | JP1/E | JP1/F | JP1/G |
|---------------+-----------+----------+----------+----------|
| COM1 (3F8h) | Closed | Open | Closed | Open |
|---------------+-----------+----------+----------+----------|
| COM2 (2F8h) | Open | Closed | Closed | Open |
|---------------+-----------+----------+----------+----------|
| í COM3 (3E8h) | Closed | Open | Open | Closed |
|---------------+-----------+----------+----------+----------|
| COM4 (2E8h) | Open | Closed | Open | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT SELECTION |
|------------------------------------------------------------|
| Setting | JP1/A | JP1/B | JP1/C |
|---------------+--------------+--------------+--------------|
| 3 | Closed | Open | Open |
|---------------+--------------+--------------+--------------|
| 4 | Open | Closed | Open |
|---------------+--------------+--------------+--------------|
| í 5 | Open | Open | Closed |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| AUTO-RETRAIN - AUTO-FALLBACK/FALL-FORWARD |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %En [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls auto-retrain mode and |
| | fallback/fall-forward |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í %E0 | Auto-retrain disabled |
|--------------+---------------------------------------------|
| %E1 | Auto-retrain enabled |
|--------------+---------------------------------------------|
| %E2 | Auto-fallback/fall-forward enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT MAPPED REGISTERS |
|------------------------------------------------------------|
| Register | Default |
|------------------------------+-----------------------------|
| S14 | 138 |
|------------------------------+-----------------------------|
| S16 | 0 |
|------------------------------+-----------------------------|
| S21 | 0 |
|------------------------------+-----------------------------|
| S22 | 117 |
|------------------------------+-----------------------------|
| S23 | 55 |
|------------------------------+-----------------------------|
| S27 | 73 |
|------------------------------+-----------------------------|
| S28 | 0 |
|------------------------------+-----------------------------|
| S31 | 2 |
|------------------------------+-----------------------------|
| S40 | 105 |
|------------------------------+-----------------------------|
| S41 | 3 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BREAK TYPE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Kn [cmds] |
|--------------+---------------------------------------------|
| Description: | Configures action of break signal |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| \K0 | Online command mode enabled, send no break |
| | to remote modem |
|---------------+--------------------------------------------|
| \K1 | Break sent to remote modem and buffers |
| | cleared |
|---------------+--------------------------------------------|
| \K2 | Online command mode enabled, send no break |
| | to remote modem |
|---------------+--------------------------------------------|
| \K3 | Send break to remote modem immediately |
|---------------+--------------------------------------------|
| \K4 | Online command mode enabled, send no break |
| | to remote modem |
|---------------+--------------------------------------------|
| \K5 | Send break with transmitted data |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECT MODE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls the type of connection the modem |
| | will operate in |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| \N0 | Normal mode enabled |
|--------------+---------------------------------------------|
| \N1 | Direct mode enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] D<#> [cmds] |
|--------------+---------------------------------------------|
| Description: | Dials telephone number according to any |
| | modifiers included in the string |
|--------------+---------------------------------------------|
| Note: | Any combination of modifiers can be used to |
| | produce the desired dial functions in |
| | sequence. |
|--------------+---------------------------------------------|
| Modifier | Function |
|--------------+---------------------------------------------|
| L | Re-dial last number |
|--------------+---------------------------------------------|
| P | Pulse dialing enabled |
|--------------+---------------------------------------------|
| R | Accepted but not acted upon |
|--------------+---------------------------------------------|
| S=n | Dial stored telephone number n (n=0-3) |
|--------------+---------------------------------------------|
| T | Tone dialing enabled |
|--------------+---------------------------------------------|
| W | Dialing resumed following dial tone |
| | detection |
|--------------+---------------------------------------------|
| ! | Modem commanded to go off-hook for |
| | specified time before returning on-hook. |
|--------------+---------------------------------------------|
| @ | Wait 5 seconds for quiet answer |
|--------------+---------------------------------------------|
| & | Waits for prompt tone |
|--------------+---------------------------------------------|
| , | Dialing paused for amount of time specified |
| | in S8 register |
|--------------+---------------------------------------------|
| ; | Modem returned to command state after |
| | dialing |
|--------------+---------------------------------------------|
| ^ | Toggles Calling tone enabled/disabled, for |
| | current call |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLASH DIAL MODIFIER TIME |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S29=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | .01 second |
|--------------+---------------------------------------------|
| Description: | Time the modem will go on-hook upon |
| | receiving the ! dial modifier in dial |
| | string. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] \Gn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects modem port flow control |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í \G0 | Flow control disabled |
|--------------+---------------------------------------------|
| \G1 | Flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S39? [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays the current flow control |
|--------------+---------------------------------------------|
| Value | Meaning |
|--------------+---------------------------------------------|
| 0 | Flow control disabled |
|--------------+---------------------------------------------|
| í 3 | RTS/CTS flow control enabled |
|--------------+---------------------------------------------|
| 4 | XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| 5 | Transparent XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| 6 | Both RTS/CTS and XON/XOFF flow control |
| | enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL CHARACTER - XOFF |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S33=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 19 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the character used to represent XOFF |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL CHARACTER - XON |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S32=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 17 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the character used to represent XON |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INACTIVITY TIMER |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S30=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | 10 seconds |
|--------------+---------------------------------------------|
| Description: | Maximum duration of DTE and DCE inactivity |
| | allowed prior to initiating hang-up |
| | process. S30=0 will disable timer. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SIGNAL LEVEL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %L [cmds] |
|--------------+---------------------------------------------|
| Description: | Returns a value which indicates the |
| | received line signal level |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE SIGNAL QUALITY |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %Q [cmds] |
|--------------+---------------------------------------------|
| Description: | Returns a value which indicates line signal |
| | quality |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Reports product code |
|--------------+---------------------------------------------|
| I1 | Reports precomputed checksum |
|--------------+---------------------------------------------|
| I2 | Reports ‘OK’ |
|--------------+---------------------------------------------|
| I3 | Reports firmware revision |
|--------------+---------------------------------------------|
| I4 | Reports OEM defined identifier string |
|--------------+---------------------------------------------|
| I5 | Reports country code |
|--------------+---------------------------------------------|
| I6 | Reports data pump model and internal code |
| | revision |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RPI/DTE SPEED |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] +Hn [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls Rockwell Protocol Interface |
| | processing and DTE speed |
|------------------------------------------------------------|
| Command | Function |
|---------------+--------------------------------------------|
| +H0 | RPI disabled |
|---------------+--------------------------------------------|
| +H1 | RPI enabled and set DTE speed to 19.2Kbps |
|---------------+--------------------------------------------|
| +H2 | RPI enabled and set DTE speed to 38.4Kbps |
|---------------+--------------------------------------------|
| +H3 | RPI enabled and set DTE speed to 57.6Kbps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SLEEP TIMER |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S24=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | 1 second |
|--------------+---------------------------------------------|
| Description: | Maximum duration of DTE and DCE inactivity |
| | allowed prior to initiating low-power sleep |
| | mode. S24=0 will disable timer. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TRANSMISSION LEVEL - FAX |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S92=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 10 |
|--------------+---------------------------------------------|
| Range: | 0-15 |
|--------------+---------------------------------------------|
| Unit: | -1 dBm |
|--------------+---------------------------------------------|
| Description: | Sets the signal level for transmission |
| | while in fax mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TRANSMISSION LEVEL - PSTN |
|------------------------------------------------------------|
| Type | Register or Configuration |
|-------------+----------------------------------------------|
| Format | AT [cmds] S91=n [cmds] |
|-------------+----------------------------------------------|
| Default | 10 |
|-------------+----------------------------------------------|
| Range | 10-15 |
|-------------+----------------------------------------------|
| Unit | -1 dBm |
|-------------+----------------------------------------------|
| Description | Sets the signal level for transmission over |
| | switched phone lines |
+------------------------------------------------------------+
