       # SHARK MULTIMEDIA

          SIXGILL-144S

          Card Type              Fax, Modem (asynchronous), Sound card
          Chip Set               Unidentified
          Maximum Onboard Memory Unidentified
          I/O Options            Audio line in, CD audio interface (2),
                                 CD-ROM interface, game/MIDI port,
                                 speakerphone, voice-mail, voice-view,
                                 wavetable interface
          Maximum Modem Rate     14.4Kbps
          Maximum Fax Rate       14.4Kbps
          Data Bus               16-bit ISA
          Fax Class              Class I & II
          Data Modulation        Bell 103/212A
          Protocol
                                 ITU-T V.22bis, V.32bis
          Fax Modulation         ITU-T V.17, V.21, V.27ter, V.29, V.33
          Protocol
          Error                  MNP5, V.42bis
          Correction/Compression

 (IMG) IMG 1


          +------------------------------------------------------------+

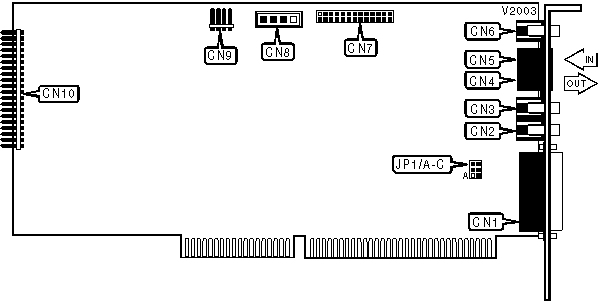

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Function        |     Label     | Function  | Label |
          |------------------------------------------------------------|
          | Game/MIDI connector |  CN1  | Audio/line in      |   CN6   |
          |---------------------+-------+--------------------+---------|
          | Speaker/line out    |  CN2  | Wavetable header   |   CN7   |
          |                     |       | connector          |         |
          |---------------------+-------+--------------------+---------|
          | Microphone/line in  |  CN3  | Panasonic CD audio |   CN8   |
          |                     |       | connector          |         |
          |---------------------+-------+--------------------+---------|
          | Phone/line out      |  CN4  | MPC2 CD audio      |   CN9   |
          |                     |       | connector          |         |
          |---------------------+-------+--------------------+---------|
          | Phone/line in       |  CN5  | IDE CD ribbon      |  CN10   |
          |                     |       | connector          |         |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     SPEAKER SELECTION                      |
          |------------------------------------------------------------|
          |    Setting    |     JP1/A     |    JP1/B    |    JP1/C     |
          |---------------+---------------+-------------+--------------|
          |    Speaker    |     Open      |    Open     |    Closed    |
          |---------------+---------------+-------------+--------------|
          |   Line out    |    Closed     |    Open     |     Open     |
          +------------------------------------------------------------+
