       # PRACTICAL PERIPHERALS, INC.

          PM14400FX II

          Card Type              Modem (asynchronous)
          Chip Set               Unidentified
          Maximum Data Rate      14.4Kbps
          Maximum Fax Rate       14.4Kbps
          Data Bus               8-bit ISA
          Fax Class              Unidentified
          Data Modulation        Bell 103/212A
          Protocol
                                 ITU-T V.21, V.22, V.22bis, V.23, V.32,
                                 V.32bis
          Fax Modulation         Unidentified
          Protocol
          Error                  MNP5, V.42, V.42bis
          Correction/Compression

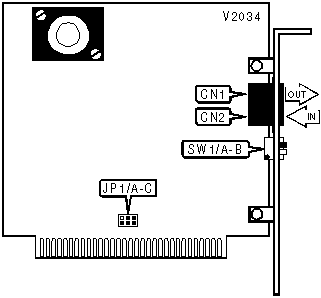

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Function        |  Label   |   Function   |  Label  |
          |------------------------------------------------------------|
          | Line out                    |    CN1     | Line in  | CN2  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    SERIAL PORT ADDRESS                     |
          |------------------------------------------------------------|
          |      Setting       |       SW1/A       |       SW1/B       |
          |--------------------+-------------------+-------------------|
          |    COM1 (3F8h)     |        On         |        On         |
          |--------------------+-------------------+-------------------|
          |   í COM2 (2F8h)    |        On         |        Off        |
          |--------------------+-------------------+-------------------|
          |    COM3 (3E8h)     |        Off        |        On         |
          |--------------------+-------------------+-------------------|
          |    COM4 (2E8h)     |        Off        |        Off        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                         INTERRUPT                          |
          |------------------------------------------------------------|
          |    Setting    |    JP1/A     |    JP1/B     |    JP1/C     |
          |---------------+--------------+--------------+--------------|
          |       2       |     Open     |    Closed    |     Open     |
          |---------------+--------------+--------------+--------------|
          |      í 3      |    Closed    |     Open     |     Open     |
          |---------------+--------------+--------------+--------------|
          |       4       |    Closed    |     Open     |     Open     |
          |---------------+--------------+--------------+--------------|
          |       5       |     Open     |     Open     |    Closed    |
          +------------------------------------------------------------+

                            Proprietary AT Command Set

                  See document V2033 for a full command summary.
