       # PRACTICAL PERIPHERALS, INC.

          2400B INTERNAL REV. B

          Modem Type                   Data (Asynchronous/Synchronous)
          Maximum Data Rate            2400 bps
          Maximum Fax Rate             N/A
          Data Bus                     8-bit ISA
          Class                        N/A
          Data Modulation Protocol     Bell 212A & 103A

                                       ITU-T V.22 & V.22bis & V.21
          Fax Modulation Protocol      N/A
          Error Correction/Compression Unidentified

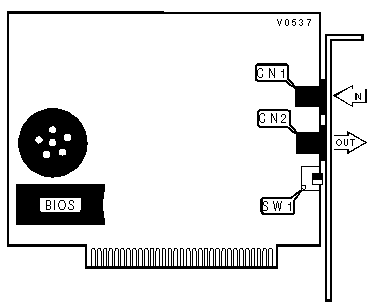

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |     Purpose      | Location |     Purpose      | Location  |
          |------------------+----------+------------------+-----------|
          | Line in          |   CN1    | Line out         |    CN2    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     COM PORT SETTINGS                      |
          |------------------------------------------------------------|
          |        COM         |       SW1/1       |       SW1/2       |
          |--------------------+-------------------+-------------------|
          |       í COM1       |        Off        |        Off        |
          |--------------------+-------------------+-------------------|
          |        COM2        |        On         |        On         |
          |--------------------+-------------------+-------------------|
          |        COM3        |        Off        |        On         |
          |--------------------+-------------------+-------------------|
          |        COM4        |        On         |        Off        |
          +------------------------------------------------------------+
