       # PRACTICAL PERIPHERALS, INC.

          PM2400FX96

          Modem Type                 Data (Asynchronous/Synchronous)/Fax
          Maximum Data Rate          2400 bps
          Maximum Fax Rate           9600 bps
          Data Bus                   8-bit ISA
          Fax Class                  Class II
          Data Modulation Protocol   Bell 103A & 212A

                                     ITU-T V.22 & V.22 bis & V.21
          Fax Modulation Protocol    GRP III
          Error                      Unidentified
          Correction/Compression

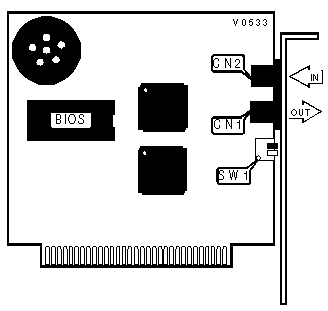

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |     Purpose      | Location |     Purpose      | Location  |
          |------------------+----------+------------------+-----------|
          | Line in          |   CN1    | Line out         |    CN2    |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                  COM PORT & IRQ SETTINGS                   |
          |------------------------------------------------------------|
          |      COM/Address/IRQ       |     SW1/1     |     SW1/2     |
          |----------------------------+---------------+---------------|
          | í COM1 / 3F8 - 3FFh / IRQ4 |      On       |      On       |
          |----------------------------+---------------+---------------|
          |  COM2 / 2F8 - 2FFh / IRQ3  |      Off      |      On       |
          |----------------------------+---------------+---------------|
          |  COM3 / 3E8 - 3FFh / IRQ4  |      On       |      Off      |
          |----------------------------+---------------+---------------|
          |  COM4 / 2E8 - 2FFh / IRQ3  |      Off      |      Off      |
          +------------------------------------------------------------+
