       # MEDIAFORTE PRODUCTS PTE., LTD.

          MOMENTA WS-3314JS3(G)

          Card Type              Modem/Fax card
          Chip Set               Unidentified
          I/O Options            Line out (RJ-11), line in (RJ-11)
          Maximum Modem Rate     33.6Kbps
          Maximum Fax Rate       14.4Kbps
          Data Modulation        Bell 103A/212A
          Protocol
                                 ITU-T V.22, V.22bis, V.32, V.32 bis,
                                 V.34
          Fax Modulation         ITU-T V.17, V.21CH2, V.27ter, V.29
          Protocol
          Error                  MNP5, V.42, V.42bis
          Correction/Compression
          Fax Class              Class I
          Data Bus               8-bit ISA

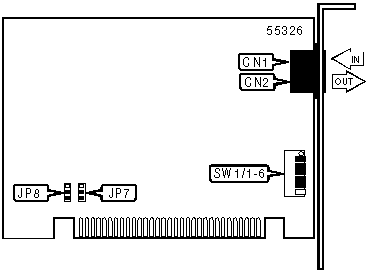

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Function        |  Label   |   Function   |  Label  |
          |------------------------------------------------------------|
          | Line In                     |    CN1     | Line out | CN2  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 PLUG & PLAY CONFIGURATION                  |
          |------------------------------------------------------------|
          |      Setting       |        JP7        |        JP8        |
          |--------------------+-------------------+-------------------|
          |    Plug & Play     | Pins 2 & 3 closed | Pins 2 & 3 closed |
          |      enabled       |                   |                   |
          |--------------------+-------------------+-------------------|
          |    Plug & play     | Pins 1 & 2 closed | Pins 1 & 2 closed |
          |      disabled      |                   |                   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |               SERIAL PORT ADDRESS/INTERRUPT                |
          |------------------------------------------------------------|
          |  Setting  |   IRQ   |SW1/1 |SW1/2 |SW1/3 |SW1/4|SW1/5|SW1/6|
          |-----------+---------+------+------+------+-----+-----+-----|
          |COM1 (3F8h)|  IRQ4   |  On  |  On  | Off  | Off | On  | Off |
          |-----------+---------+------+------+------+-----+-----+-----|
          |COM2 (2F8h)|  IRQ3   | Off  |  On  | Off  | On  | Off | Off |
          |-----------+---------+------+------+------+-----+-----+-----|
          |COM3 (3E8h)|  IRQ5   |  On  | Off  | Off  | Off | Off | On  |
          |-----------+---------+------+------+------+-----+-----+-----|
          |COM3 (3E8h)|  IRQ4   |  On  | Off  | Off  | Off | On  | Off |
          |-----------+---------+------+------+------+-----+-----+-----|
          |COM4 (2E8h)|  IRQ2   | Off  | Off  |  On  | Off | Off | Off |
          |-----------+---------+------+------+------+-----+-----+-----|
          |  î COM4   |  IRQ3   | Off  | Off  | Off  | On  | Off | Off |
          |  (2E8h)   |         |      |      |      |     |     |     |
          |-----------+---------+------+------+------+-----+-----+-----|
          | Disabled  |Disabled | Off  | Off  | Off  | Off | Off | Off |
          |------------------------------------------------------------|
          |Note: Settings should be disabled when using Plug n’ Play   |
          |mode.                                                       |
          +------------------------------------------------------------+



          +------------------------------------------------------------+
          |                   SUPPORTED COMMAND SET                    |
          |------------------------------------------------------------|
          |                     Basic AT Commands                      |
          |------------------------------------------------------------|
          | AT, ‘+++’, A/                                              |
          |------------------------------------------------------------|
          | A, B, E, H, M, O, P, Q, S, T, V, X, Y, Z                   |
          |------------------------------------------------------------|
          | &C, &P, &R, &T, &V, &W, &Y, &Z                             |
          |------------------------------------------------------------|
          |                    Extended AT Commands                    |
          |------------------------------------------------------------|
          | \A, \B, \K, \N                                             |
          |------------------------------------------------------------|
          | %C, %E, %L, %Q                                             |
          |------------------------------------------------------------|
          |                      Special Commands                      |
          |------------------------------------------------------------|
          | +MS                                                        |
          |------------------------------------------------------------|
          |                        S Registers                         |
          |------------------------------------------------------------|
          | S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12,     |
          | S14, S16, S18, S21, S22, S23, S24, S25                     |
          |------------------------------------------------------------|
          | S26, S27, S28, S29, S30, S31, S32, S33, S36, S37, S38,     |
          | S39, S40                                                   |
          |------------------------------------------------------------|
          | S41, S46, S48, S82, S86, S91, S92, S95                     |
          |------------------------------------------------------------|
          | Note: See MHI Help File for full command documentation.    |
          +------------------------------------------------------------+

                            Proprietary AT Command Set

         For a full command summary, see MEDIAFORTE PRODUCTS PTE., LTD.,
                            MOMENTA K56 EXTERNAL MODEM
