       # MULTI-TECH SYSTEMS, INC.

          MT5634ZPW-PCI

          Card Type              Modem
          Chip Set               Unidentified
          I/O Options            Line in, line out, microphone in,
                                 speaker out
          Maximum Modem Rate     56Kbps
          Maximum Fax Rate       14.4Kbps
          Data Modulation        Bell 103/212A
          Protocol
                                 ITU-T V.22, V.22bis, V.32ter, V.32bis,
                                 V.34, 56Kflex
          Fax Modulation         ITU-T V.17, V.27ter, V.29
          Protocol
          Error                  MNP5, V.42, V.42bis
          Correction/Compression
          Fax Class              Class I
          Data Bus               32-bit PCI

 (IMG) IMG 1


          +------------------------------------------------------------+

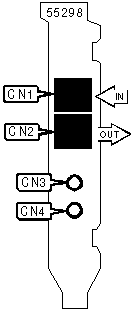

          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |      Function       |  Label  |   Function    |   Label    |
          |------------------------------------------------------------|
          | Line in (RJ-11)           |   CN1   | Speaker out   | CN3  |
          |---------------------------+---------+---------------+------|
          | Line out (RJ-11)          |   CN2   | Microphone in | CN4  |
          +------------------------------------------------------------+

          +---------------------------------------------------------+
          |                  SUPPORTED COMMAND SET                  |
          |---------------------------------------------------------|
          |                    Basic AT Commands                    |
          |---------------------------------------------------------|
          | AT, ‘+++’, A/                                           |
          |---------------------------------------------------------|
          | A, C, E, F, H, M, Q, V                                  |
          |---------------------------------------------------------|
          | &C, &F, &G, &V, &Z                                      |
          |---------------------------------------------------------|
          |                  Extended AT Commands                   |
          |---------------------------------------------------------|
          | \V                                                      |
          |---------------------------------------------------------|
          |                    Special Commands                     |
          |---------------------------------------------------------|
          | -C                                                      |
          |---------------------------------------------------------|
          |                       S Registers                       |
          |---------------------------------------------------------|
          | S0, S1, S2, S3, S4, S5, S10, S30                        |
          |---------------------------------------------------------|
          |                                                         |
          |---------------------------------------------------------|
          | Note: See MHI Help File for full command documentation. |
          +---------------------------------------------------------+

                            Proprietary AT Command Set

       For a full command summary, see MULTI-TECH SYSTEMS, INC. MT5634ZPW,
                               MT3356ZPW, MT3334ZPW
