# MULTIWAVE INNOVATION, INC
COMMWAVE V.34 PLUG & PLAY (VER.1.0)
Card Type Modem (synchronous/asynchronous), Voice
Chipset PCtel
Maximum Modem Rate 33.6Kbps
Maximum Fax Rate 14.4Kbps
Fax Class Class I & II
Modem Modulation Bell 103A/212A
Protocol
ITU-T V.21, V.22, V.22bis, V.23, V.32,
V.32bis, V.34
Fax Modulation ITU-T V.17, V.21 CH2, V.27ter, V.29
Protocol
Error MNP5, V.42, V.42bis
Correction/Compression
Data Bus 16-bit ISA
(IMG) IMG 1
+------------------------------------------------------------+

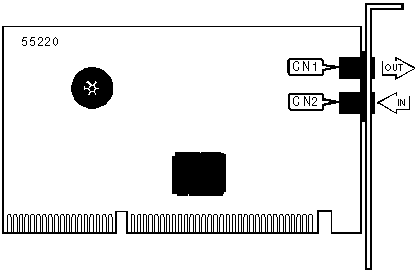

| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line out | CN1 | Line in | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SUPPORTED COMMAND SET |
|------------------------------------------------------------|
| Basic AT Commands |
|------------------------------------------------------------|
| AT, A/ |
|------------------------------------------------------------|
| A, E, H, L, M, O, P, Q, T, V, W, X, Y, Z |
|------------------------------------------------------------|
| &C, &F, &G, &W, &X, &Y, &Z |
|------------------------------------------------------------|
| Extended AT Commands |
|------------------------------------------------------------|
| \A, \B, \G, \K, \L, \N |
|------------------------------------------------------------|
| %C, %L, %Q |
|------------------------------------------------------------|
| S Registers |
|------------------------------------------------------------|
| S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12, |
| S18, S25, S30, S32, S33, S38, S91 |
|------------------------------------------------------------|
| |
|------------------------------------------------------------|
| Special Commands |
|------------------------------------------------------------|
| #CID |
|------------------------------------------------------------|
| Voice Commands |
|------------------------------------------------------------|
| #BDR, #MDL?, #MFR?, #REV?, #SPK, #TL, #VBQ?, #VBT, #VCI?, |
| #VLS, #VRA, #VRN, #VRX |
|------------------------------------------------------------|
| #VSD, #VSK, #VSP, #VSS, #VTD, #VTS, #VTX |
|------------------------------------------------------------|
| Note: See MHI Help File for full command documentation. |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| AUTO-MODE DETECTION |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Nn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects various options for the automatic |
| | detection and negotiation of protocols |
| | during the handshake process if the modem |
| | is communicating with a remote modem of |
| | dissimilar speed. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| N0 | Auto-mode detection disabled |
|--------------+---------------------------------------------|
| í N1 | Auto-mode detection enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| COMMUNICATION PROTOCOLS |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] Bn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the communication protocol for data |
| | calls |
|------------------------------------------------------------|
| Note: The B command allows the simultaneous selection |
| of more than one suffix, enabling multiple protocols. |
| Originate mode will transmit at 75bps and receive at |
| 1200bps; answer mode will transmit at 1200bps and |
| receive at 75bps |
|------------------------------------------------------------|
| Command | Protocol |
|--------------+---------------------------------------------|
| B0 | ITU-T V.22 |
|--------------+---------------------------------------------|
| í B1 | Bell 212A |
|--------------+---------------------------------------------|
| B2 | ITU-T V.23 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONFIGURATION PROFILES |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &V [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays active and stored configuration |
| | profiles |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &V0 | Display active profile |
|--------------+---------------------------------------------|
| &V1 | Display stored profiles |
|--------------+---------------------------------------------|
| &V2 | Display stored telephone numbers |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA SET READY (DSR) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Sn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects DSR options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í &S0 | DSR forced high |
|--------------+---------------------------------------------|
| &S1 | DSR high only while modem is handshaking or |
| | connected |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DATA TERMINAL READY (DTR) |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Dn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects modem response to DTR |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í &D0 | DTR forced high |
|--------------+---------------------------------------------|
| &D1 | DTR drop causes online command mode |
|--------------+---------------------------------------------|
| &D2 | DTR drop causes hang-up |
|--------------+---------------------------------------------|
| &D3 | DTR drop causes reset. &Y determines |
| | power-up profile |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAL |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] D<#> [cmds] |
|--------------+---------------------------------------------|
| Description: | Dials telephone number according to any |
| | modifiers included in the string |
|--------------+---------------------------------------------|
| Note: | Any combination of modifiers can be used to |
| | produce the desired dial functions in |
| | sequence. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| DL | Re-dial last number |
|--------------+---------------------------------------------|
| DP | Pulse dialing enabled |
|--------------+---------------------------------------------|
| DSn | Dial stored telephone number n |
|--------------+---------------------------------------------|
| DT | Tone dialing enabled/Pulse dialing disabled |
|--------------+---------------------------------------------|
| DW | Dialing resumed following dial tone |
| | detection |
|--------------+---------------------------------------------|
| D, | Dialing paused for amount of time specified |
| | in S8 register |
|--------------+---------------------------------------------|
| D@ | Wait for Quite Answer function enabled. |
| | Modem waits until a "quiet answer," a |
| | ring-back signal followed by 5 seconds of |
| | silence |
|--------------+---------------------------------------------|
| D! | Flash function initiated. Modem commanded |
| | to go off-hook for specified time before |
| | returning on-hook. |
|--------------+---------------------------------------------|
| D; | Modem returned to idle state after dialing. |
| | The semicolon can only be placed at the end |
| | of the dial command. |
|--------------+---------------------------------------------|
| D^ | 1300Hz calling tone enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DISPLAY LIST |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &$ [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays a list of ampersand commands |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Kn [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables flow control options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &K0 | Flow control disabled |
|--------------+---------------------------------------------|
| &K3 | RTS/CTS flow control enabled |
|--------------+---------------------------------------------|
| &K4 | XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| &K5 | Transparent XON/XOFF flow control enabled |
|--------------+---------------------------------------------|
| &K6 | RTS/CTS & XON/XOFF flow control enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| PULSE DIALING RATIO |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Pn [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects pulse dial make/break ratio |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &P0 | 39/61ms at 10pps (North America) |
|--------------+---------------------------------------------|
| &P1 | 33/67ms at 10pps (Europe) |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Reports 5 digit product code |
|--------------+---------------------------------------------|
| I1 | Reports hardware variation code |
|--------------+---------------------------------------------|
| I2 | Reports internal code |
|--------------+---------------------------------------------|
| I3 | Reports software revision level |
|--------------+---------------------------------------------|
| I4 | Reports product feature |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TEST MODES |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Tn |
|--------------+---------------------------------------------|
| Description: | Selects test options |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| &T0 | End current test |
|--------------+---------------------------------------------|
| &T1 | Begin local analog loopback test |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TRELLIS CODING |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] &Un [cmds] |
|--------------+---------------------------------------------|
| Description: | Enables/disables trellis coding |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í&U0 | V.32 trellis coding enabled |
|--------------+---------------------------------------------|
| &U1 | V.32 trellis coding disabled |
+------------------------------------------------------------+
EXTENDED AT COMMAND SET
+------------------------------------------------------------+
| AUTO-RETRAIN - AUTO-FALLBACK/FALL-FORWARD |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] %En [cmds] |
|--------------+---------------------------------------------|
| Description: | Controls auto-retrain mode and |
| | fallback/fall-forward |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| %E0 | Auto-retrain disabled |
|--------------+---------------------------------------------|
| %E1 | Auto-retrain enabled |
|--------------+---------------------------------------------|
| í %E2 | Auto-retrain & fallback enabled |
|--------------+---------------------------------------------|
| %E3 | Auto-retrain & fast hang-up enabled |
+------------------------------------------------------------+
S(status) REGISTERS
+------------------------------------------------------------+
| BIT RATE |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S34=n [cmds] |
|--------------+---------------------------------------------|
| Range: | 0-11 |
|--------------+---------------------------------------------|
| Unit: | Kbps |
|--------------+---------------------------------------------|
| Description: | Sets maximum bit rate for V.34 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| V.34 BAUD RATE |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S35=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the minimum allowable baud rate for |
| | V.34 negotiation. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| S35=0 | 2400bps |
|--------------+---------------------------------------------|
| S35=1 | 2743bps |
|--------------+---------------------------------------------|
| S35=2 | 2800bps |
|--------------+---------------------------------------------|
| S35=3 | 3000bps |
|--------------+---------------------------------------------|
| S35=4 | 3200bps |
|--------------+---------------------------------------------|
| S35=5 | 3429bps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DCE LINE SPEED |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S37=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the maximum allowable data exchange |
| | rate attempted during handshake process. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| S37=0 | Attempt to connect at highest speed |
|--------------+---------------------------------------------|
| S37=3 | 300bps |
|--------------+---------------------------------------------|
| S37=4 | 1200bps |
|--------------+---------------------------------------------|
| S37=6 | 2400bps |
|--------------+---------------------------------------------|
| S37=7 | 4800bps |
|--------------+---------------------------------------------|
| S37=8 | 7200bps |
|--------------+---------------------------------------------|
| S37=9 | 9600bps |
|--------------+---------------------------------------------|
| S37=10 | 12.0Kbps |
|--------------+---------------------------------------------|
| S37=11 | 14.4Kbps |
|--------------+---------------------------------------------|
| S37=12 | 33.6Kbps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| CONNECTION FAILURE CODES |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S86? [cmds] |
|--------------+---------------------------------------------|
| Description: | Reports codes which correspond to the |
| | possible causes of a connection failure |
|--------------+---------------------------------------------|
| Value | Meaning |
|--------------+---------------------------------------------|
| 0 | Normal hang up |
|--------------+---------------------------------------------|
| 4 | Carrier signal lost |
|--------------+---------------------------------------------|
| 5 | No error-control detected for remote modem |
| | during feature negotiation |
|--------------+---------------------------------------------|
| 6 | Remote modem failed to respond to feature |
| | negotiation |
|--------------+---------------------------------------------|
| 9 | No common protocol found |
|--------------+---------------------------------------------|
| 12 | No failure - remote modem disconnected |
| | normally |
|--------------+---------------------------------------------|
| 13 | Remote modem failed to respond after 10 |
| | re-transmissions same message |
|--------------+---------------------------------------------|
| 14 | Violation of negotiated protocol caused |
| | failure |
|--------------+---------------------------------------------|
| 20 | Long Space Disconnect (Y1) time limit |
| | reached |
+------------------------------------------------------------+
VOICE COMMANDS
+------------------------------------------------------------+
| MODE SELECTION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #CLS=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects which mode the modem will operate |
| | in. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| #CLS=0 | Modem will operate in data mode. |
|--------------+---------------------------------------------|
| #CLS=1 | Modem will operate in fax class I mode. |
|--------------+---------------------------------------------|
| #CLS=8 | Modem will operate in voice mode. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| RECORD GAIN |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #RG=hhhh [cmds] |
|--------------+---------------------------------------------|
| Default: | 7FFF |
|--------------+---------------------------------------------|
| Range: | 0000 - 7FFF |
|--------------+---------------------------------------------|
| Unit: | Unidentified (hexadecimal) |
|--------------+---------------------------------------------|
| Description: | Sets the record gain. #RG? queries value |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VOICE SAMPLE QUALITY |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #VBS=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Selects the number of bits per sample that |
| | the modem records. |
|--------------+---------------------------------------------|
| Note: | Only 4 bits per sample compression ratio is |
| | supported, The #VBS? command will return 4. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| í #VBS=4 | Modem records 4 bits per sample in ADPCM |
| | encoding. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| VOICE SAMPLING RATE |
|------------------------------------------------------------|
| Type: | Configuration |
|--------------+---------------------------------------------|
| Format: | AT [cmds] #VSR=n [cmds] |
|--------------+---------------------------------------------|
| Description: | Sets the sampling rate used when recording |
| | voice signals. |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| #VSR=8000 | Selects a sampling rate of 8000Hz |
+------------------------------------------------------------+
