# MOTOROLA, INC.
6520/6560 MPROUTER DSPM/E&M CARD
Card Type Telephony
Chip Set Unidentified
I/O Options Telephone in/out (2), MVIP bus
Data Bus 16-bit ISA
Line Type E & M

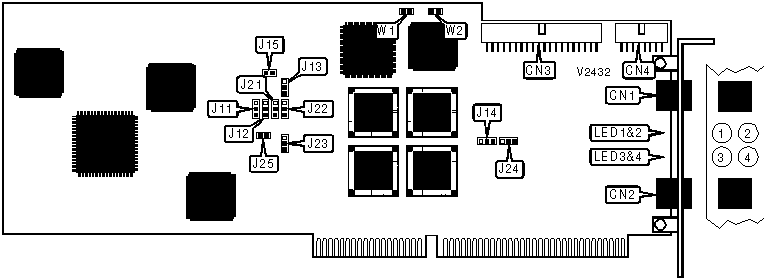

(IMG) IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------+-------+------------------------+-------|
| Line 1 | CN1 | MVIP bus (not used) | CN3 |
|-------------------+-------+------------------------+-------|
| Line 2 | CN2 | 48V DC power in | CN4 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|----------------------------------------+-------+-----------|
| » | Line 1 complex impedance type set | J13 | Pins 1 & |
| | for German operation | | 2 closed |
|---+------------------------------------+-------+-----------|
| | Line 1 complex impedance type set | J13 | Pins 2 & |
| | for UK operation | | 3 closed |
|---+------------------------------------+-------+-----------|
| » | Line 2 complex impedance type set | J23 | Pins 1 & |
| | for German operation | | 2 closed |
|---+------------------------------------+-------+-----------|
| | Line 2 complex impedance type set | J23 | Pins 2 & |
| | for UK operation | | 3 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MVIP BUS TERMINATION (NOT USED) |
|------------------------------------------------------------|
| Setting | W1 | W2 |
|------------------------+-----------------+-----------------|
| » | Not terminated | Open | Open |
|---+--------------------+-----------------+-----------------|
| | Terminated | Closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE 1 IMPEDANCE TYPE |
|------------------------------------------------------------|
| Setting | J11 | J14 |
|------------------------+-----------------+-----------------|
| » | Simple 600 ohm | Pins 1 & 2 | Pins 2 & 3 |
| | impedance | closed | closed |
|---+--------------------+-----------------+-----------------|
| | Complex impedance | Pins 2 & 3 | Pins 1 & 2 |
| | | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE 2 IMPEDANCE TYPE |
|------------------------------------------------------------|
| Setting | J21 | J24 |
|------------------------+-----------------+-----------------|
| » | Simple 600 ohm | Pins 1 & 2 | Pins 2 & 3 |
| | impedance | closed | closed |
|---+--------------------+-----------------+-----------------|
| | Complex impedance | Pins 2 & 3 | Pins 1 & 2 |
| | | closed | closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE 1 TYPE |
|------------------------------------------------------------|
| Setting | J12 | J15 |
|-----------------------+--------------------+---------------|
| » | Four-wire | Pins 1 & 2 closed | Open |
|---+-------------------+--------------------+---------------|
| | Two-wire | Pins 2 & 3 closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| LINE 2 TYPE |
|------------------------------------------------------------|
| Setting | J22 | J25 |
|-----------------------+--------------------+---------------|
| » | Four-wire | Pins 1 & 2 closed | Open |
|---+-------------------+--------------------+---------------|
| | Two-wire | Pins 2 & 3 closed | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| DIAGNOSTIC LED(S) |
|------------------------------------------------------------|
| LED | Color | Status | Condition |
|------+-------+--------+------------------------------------|
| LED1 | Green | On | Line 1 local connection is off |
| | | | hook |
|------+-------+--------+------------------------------------|
| LED1 | Green | Off | Line 1 local connection is on hook |
|------+-------+--------+------------------------------------|
| LED2 | Green | On | Line 1 remote connection is off |
| | | | hook |
|------+-------+--------+------------------------------------|
| LED2 | Green | Off | Line 1 remote connection is on |
| | | | hook |
|------+-------+--------+------------------------------------|
| LED3 | Green | On | Line 2 local connection is off |
| | | | hook |
|------+-------+--------+------------------------------------|
| LED3 | Green | Off | Line 2 local connection is on hook |
|------+-------+--------+------------------------------------|
| LED4 | Green | On | Line 2 remote connection is off |
| | | | hook |
|------+-------+--------+------------------------------------|
| LED4 | Green | Off | Line 2 remote connection is on |
| | | | hook |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTE |
|------------------------------------------------------------|
| This card is designed for use in Motorola’s 6520/6560 |
| MPRouter system and will not function in another system. |
| See documents M3596 and M3597 for more information. |
+------------------------------------------------------------+
(IMG) IMG 2
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|-------------------------+-------+------------------+-------|
| Connector to computer | CN1 | Status connector | CN3 |
| power supply | | | |
|-------------------------+-------+------------------+-------|
| Connector to computer | CN2 | 48V DC power out | CN4 |
| power supply | | | |
+------------------------------------------------------------+
+------------------------------------------------------------+
| USER CONFIGURABLE SETTINGS |
|------------------------------------------------------------|
| Setting | Label | Position |
|--------------------------------+-------+-------------------|
| » | Ring generation enabled | JP1 | Pins 2 & 3 closed |
|---+----------------------------+-------+-------------------|
| | Ring generation disabled | JP1 | Pins 1 & 2 closed |
|---+----------------------------+-------+-------------------|
| » | Ring frequency set to 25Hz | JP2 | Pins 2 & 3 closed |
|---+----------------------------+-------+-------------------|
| | Ring frequency set to 50Hz | JP2 | Pins 1 & 2 closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| MISCELLANEOUS TECHNICAL NOTE |
|------------------------------------------------------------|
| This power supply can power up to six DSPM/E&M cards via |
| an included multi-connector cable. |
+------------------------------------------------------------+
