       # MAXTECH CORPORATION

          9600BPS TURBOMODEM INTERNAL

          Card Type                    Modem (asynchronous)
          Chip Set                     Unidentified
          Maximum Data Rate            9600bps
          Data Bus                     8-bit ISA
          Data Modulation Protocol     Bell 103/212A

                                       ITU-T V.21, V.22, V.22bis, V.32
          Error Correction/Compression MNP5, V.42, V.42bis

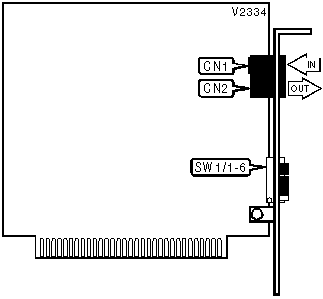

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Function        |  Label   |   Function   |  Label  |
          |------------------------------------------------------------|
          | Line in                     |    CN1     | Line out | CN2  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    SERIAL PORT ADDRESS                     |
          |------------------------------------------------------------|
          |      Setting       |       SW1/1       |       SW1/2       |
          |--------------------+-------------------+-------------------|
          |   í COM1 (3F8h)    |        On         |        On         |
          |--------------------+-------------------+-------------------|
          |    COM2 (2F8h)     |        Off        |        On         |
          |--------------------+-------------------+-------------------|
          |    COM3 (3E8h)     |        On         |        Off        |
          |--------------------+-------------------+-------------------|
          |    COM4 (2E8h)     |        Off        |        Off        |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                         INTERRUPT                          |
          |------------------------------------------------------------|
          |  Setting   |   SW1/3   |   SW1/4   |   SW1/5   |   SW1/6   |
          |------------+-----------+-----------+-----------+-----------|
          |     2      |    On     |    Off    |    Off    |    Off    |
          |------------+-----------+-----------+-----------+-----------|
          |     3      |    Off    |    On     |    Off    |    Off    |
          |------------+-----------+-----------+-----------+-----------|
          |    í 4     |    Off    |    Off    |    On     |    Off    |
          |------------+-----------+-----------+-----------+-----------|
          |     5      |    Off    |    Off    |    Off    |    On     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                   SUPPORTED COMMAND SET                    |
          |------------------------------------------------------------|
          |                     Basic AT Commands                      |
          |------------------------------------------------------------|
          | AT, ‘+++’, ‘Comma’, A/                                     |
          |------------------------------------------------------------|
          | A, B, D, E, H, L, M, O, Q, S, V, X, Y, Z                   |
          |------------------------------------------------------------|
          | &C, &D, &G, &L, &M, &P, &R, &S, &T, &V, &W, &X, &Y, &Z     |
          |------------------------------------------------------------|
          |                    Extended AT Commands                    |
          |------------------------------------------------------------|
          | \A, \B, \C, \E, \G, \J, \K, \O, \Q, \U, \V, \X, \Y, \Z,    |
          | %A, %C                                                     |
          |------------------------------------------------------------|
          |                        S Registers                         |
          |------------------------------------------------------------|
          | S0, S1, S2, S3, S4, S5, S6, S7, S8, S9, S10, S11, S12,     |
          | S14, S16, S18, S21, S22, S23                               |
          |------------------------------------------------------------|
          | S25, S26, S27                                              |
          |------------------------------------------------------------|
          | Note: See MHI Help file for full command documentation.    |
          +------------------------------------------------------------+

                            Proprietary AT Command Set

       See: MAXTECH CORPORATION, 14400BPS TURBOMODEM INTERNAL document for
                             a full command summary.
