MOD530 2400BPS
Card Type Modem (asynchronous/synchronous)
Chip Set Unidentified
Maximum Data Rate 2400bps
Data Bus 8-bit ISA
Data Modulation Protocol Bell 103/212A
ITU-T V.22, V.22bis

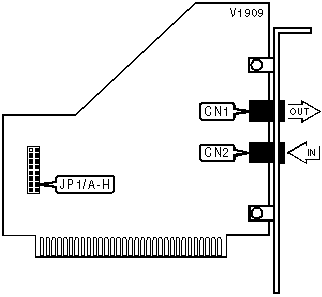

(IMG) IMG 1
+------------------------------------------------------------+
| CONNECTIONS |
|------------------------------------------------------------|
| Function | Label | Function | Label |
|------------------------------------------------------------|
| Line out | CN1 | Line in | CN2 |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SERIAL PORT ADDRESS |
|------------------------------------------------------------|
| Setting | JP1/A | JP1/B | JP1/C | JP1/D |
|---------------+-----------+----------+----------+----------|
| í COM1 (3F8h) | Closed | Open | Open | Open |
|---------------+-----------+----------+----------+----------|
| COM2 (2F8h) | Open | Closed | Open | Open |
|---------------+-----------+----------+----------+----------|
| COM3 (3E8h) | Open | Open | Closed | Open |
|---------------+-----------+----------+----------+----------|
| COM4 (2E8h) | Open | Open | Open | Closed |
+------------------------------------------------------------+
+------------------------------------------------------------+
| INTERRUPT |
|------------------------------------------------------------|
| Setting | JP1/E | JP1/F | JP1/G | JP1/H |
|------------+-----------+-----------+-----------+-----------|
| 3 | Closed | Open | Open | Open |
|------------+-----------+-----------+-----------+-----------|
| í 4 | Open | Closed | Open | Open |
|------------+-----------+-----------+-----------+-----------|
| 5 | Open | Open | Closed | Open |
|------------+-----------+-----------+-----------+-----------|
| 7 | Open | Open | Open | Closed |
+------------------------------------------------------------+
Proprietary AT Command Set
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S14 |
|------------------------------------------------------------|
| Format | AT [cmds] S14=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 170 |
|--------------+---------------------------------------------|
| Range: | 0-174 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls echo, result codes and display, |
| | dial mode, and answer/originate mode. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | í 0 | Not used |
|------+-------+---------------------------------------------|
| 1 | 0 | Command echo disabled |
| | | |
| | í 1 | Command echo enabled |
|------+-------+---------------------------------------------|
| 2 | í 0 | Result codes enabled |
| | | |
| | 1 | Result codes disabled |
|------+-------+---------------------------------------------|
| 3 | 0 | Display result codes in numeric format |
| | | |
| | í 1 | Display result codes in verbose format |
|------+-------+---------------------------------------------|
| 4 | í 0 | Not used |
|------+-------+---------------------------------------------|
| 5 | 0 | Tone dial enabled |
| | | |
| | í 1 | Pulse dial enabled |
|------+-------+---------------------------------------------|
| 6 | í 0 | Not used |
|------+-------+---------------------------------------------|
| 7 | 0 | Answer mode enabled |
| | | |
| | í 1 | Originate mode enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S21 |
|------------------------------------------------------------|
| Format | AT [cmds] S21=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-253 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Selects jack type, CTS/DCD/DSR signals, low |
| | DTR action, and the long space disconnect |
| | function. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | í 0 | Selects RJ-11, RJ-41S, or RJ45S jack |
| | | |
| | 1 | Selects RJ-12 or RJ-13 jack |
|------+-------+---------------------------------------------|
| 1 | í 0 | Not used |
|------+-------+---------------------------------------------|
| 2 | í 0 | CTS follows RTS |
| | | |
| | 1 | CTS forced high |
|------+-------+---------------------------------------------|
| 4, 3 | í 00 | DTR signal ignored |
| | | |
| | 01 | Modem goes to command mode on low DTR |
| | | |
| | 10 | Modem disconnects on low DTR; Auto-Answer |
| | | is disabled. |
| | 11 | |
| | | Modem is initialized on low DTR |
|------+-------+---------------------------------------------|
| 5 | í 0 | DCD forced high |
| | | |
| | 1 | DCD normal |
|------+-------+---------------------------------------------|
| 6 | í 0 | DSR forced high |
| | | |
| | 1 | DSR normal |
|------+-------+---------------------------------------------|
| 7 | í 0 | Long space disconnect function disabled |
| | | |
| | 1 | Long space disconnect function enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S22 |
|------------------------------------------------------------|
| Format | AT [cmds] S22=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 118 |
|--------------+---------------------------------------------|
| Range: | 0-127 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls speaker volume and controls, and |
| | limits results codes. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 1, 0 | 00 | Off volume |
| | | |
| | í 01 | Low level volume |
| | | |
| | 10 | Medium level volume |
| | | |
| | 11 | High level volume |
|------+-------+---------------------------------------------|
| 3, 2 | 00 | Speaker off |
| | | |
| | í 01 | Speaker off on carrier |
| | | |
| | 10 | Speaker always on |
| | | |
| | 11 | Speaker on during handshake |
|------+-------+---------------------------------------------|
| 6, | 000 | Basic result codes only enabled |
| 5, 4 | | |
| | 100 | Basic and connection speed result codes |
| | | enabled |
| | 101 | |
| | | Basic and connection speed result codes and |
| | 110 | dialtone detection enabled |
| | | |
| | í 111 | All result codes except dialtone detection |
| | | enabled |
| | | |
| | | All result codes enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S23 |
|------------------------------------------------------------|
| Format | AT [cmds] S23=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 7 |
|--------------+---------------------------------------------|
| Range: | 0-189 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Grants/denies remote digital loopback, |
| | controls DTE rate and parity, and sets |
| | guard tone. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | 0 | Remote digital loopback denied |
| | | |
| | í 1 | Remote digital loopback allowed |
|------+-------+---------------------------------------------|
| 3, | 000 | Sets serial port speed to 0-300bps |
| 2, 1 | | |
| | 001 | Sets serial port speed to 600bps |
| | | |
| | 010 | Sets serial port speed to 1200bps |
| | | |
| | í 011 | Sets serial port speed to 2400bps |
| | | |
| | 100 | Sets serial port speed to 4800bps |
| | | |
| | 101 | Sets serial port speed to 9600bps |
| | | |
| | 110 | Sets serial port speed to 19200bps |
|------+-------+---------------------------------------------|
| 5,4 | í 00 | Parity even |
| | | |
| | 01 | Not used |
| | | |
| | 10 | Parity odd |
| | | |
| | 11 | No Parity |
|------+-------+---------------------------------------------|
| 7, 6 | í 00 | Guard tone disabled |
| | | |
| | 01 | Guard tone disabled |
| | | |
| | 10 | Guard tone 1800Hz enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S27 |
|------------------------------------------------------------|
| Format | AT [cmds] S27=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 9 |
|--------------+---------------------------------------------|
| Range: | 0-109 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Selects line type, clock source, and |
| | ITU-T/Bell modes. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 3, | í 101 | Not used |
| 1, 0 | | |
|------+-------+---------------------------------------------|
| 2 | í 0 | Switched line |
| | | |
| | 1 | Leased line |
|------+-------+---------------------------------------------|
| 5, 4 | í 00 | Local modem generates transmit clock source |
| | | |
| | 01 | Local DTE generates transmit clock source |
| | | |
| | 10 | Remote DCE/DTE generates transmit clock |
| | | source |
|------+-------+---------------------------------------------|
| 6 | í 0 | ITU/T mode |
| | | |
| | 1 | Bell mode |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S28 |
|------------------------------------------------------------|
| Format | AT [cmds] S28=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-31 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls V.23 split speed, transmit/receive |
| | speed, half duplex; and pulse dialing. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | í 0 | V.23 split speed operation disabled |
| | | |
| | 1 | V.23 split speed operation enabled |
|------+-------+---------------------------------------------|
| 1 | í 0 | 75bps transmit, 1200bps receive disabled |
| | | |
| | 1 | 1200bps transmit, 75bps receive enabled |
|------+-------+---------------------------------------------|
| 2 | í 0 | V.23 half-duplex disabled |
| | | |
| | 1 | 1200bps transmit, 1200bps receive enabled |
|------+-------+---------------------------------------------|
| 4, 3 | í 00 | 39ms make/61ms break at 10pps |
| | | |
| | 01 | 33ms make/67ms break at 10pps |
| | | |
| | 10 | 39ms make/61ms break at 20pps |
| | | |
| | 11 | 33ms make/67ms break at 20pps |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S31 |
|------------------------------------------------------------|
| Format: | AT [cmds] S31=n [cmds] |
|-----------------+------------------------------------------|
| Default: | 2 |
|-----------------+------------------------------------------|
| Range: | 0-10 |
|-----------------+------------------------------------------|
| Unit: | Bit-mapped |
|-----------------+------------------------------------------|
| Description: | Controls auto-baud function and result |
| | codes |
|------------------------------------------------------------|
| Bit | Value | Function |
|----------+-------+-----------------------------------------|
| 0 | í 0 | Not used |
|------------------------------------------------------------|
| 1 | 0 | Auto-baud disabled |
| | | |
| | í | Auto-baud enabled |
| | 1 | |
|--------------+----+----------------------------------------|
| 3, 2 | í | DTE speed displayed in result codes |
| | 00 | |
| | | Extended result codes enabled; DCE |
| | 01 | speed displayed in result codes. |
| | | |
| | 10 | DCE speed displayed in result codes |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S39 |
|------------------------------------------------------------|
| Format | AT [cmds] S39=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 3 |
|--------------+---------------------------------------------|
| Range: | 0-6 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls flow control |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 2, | 000 | Flow control disabled |
| 1, 0 | | |
| | í 011 | Hardware flow control enabled |
| | | |
| | 100 | Normal software flow control enabled |
| | | |
| | 101 | Transparent software flow control enabled |
| | | |
| | 110 | Both hardware and software flow control |
| | | enabled |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S40 |
|------------------------------------------------------------|
| Format | AT [cmds] S40=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 105 |
|--------------+---------------------------------------------|
| Range: | 0-239 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls power level and break handling; |
| | selects MNP extended services, link |
| | negotiation, and block size. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | 0 | MNP extended services disabled |
| | | |
| | í 1 | MNP extended services enabled |
|------+-------+---------------------------------------------|
| 1 | í 0 | Power level adjustment enabled |
| | | |
| | 1 | Power level adjustment disabled |
|------+-------+---------------------------------------------|
| 2 | í 0 | Link will be negotiated at highest possible |
| | | speed |
| | 1 | |
| | | Link will be negotiated at 1200bps |
|------+-------+---------------------------------------------|
| 5, | 000 | \K0 |
| 4, 3 | | |
| | 001 | \K1 |
| | | |
| | 010 | \K2 |
| | | |
| | 011 | \K3 |
| | | |
| | 100 | \K4 |
| | | |
| | í 101 | \K5 |
|------+-------+---------------------------------------------|
| 7, 6 | 00 | MNP block size is 64 characters |
| | | |
| | í 01 | MNP block size is 128 characters |
| | | |
| | 10 | MNP block size is 192 characters |
| | | |
| | 11 | MNP block size is 256 characters |
+------------------------------------------------------------+
+------------------------------------------------------------+
| BIT-MAPPED REGISTER S41 |
|------------------------------------------------------------|
| Format | AT [cmds] S41=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 3 |
|--------------+---------------------------------------------|
| Range: | 0-31 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Selects compression, auto-retrain, flow |
| | control, and MNP mode. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 1 - | 00 | Data compression disabled |
| 0 | | |
| | 01 | MNP5 enabled |
| | | |
| | 10 | V.42bis enabled |
| | | |
| | í 11 | MNP5 and V.42bis enabled |
|------+-------+---------------------------------------------|
| 2 | í 0 | Auto-retrain disabled |
| | | |
| | 1 | Auto-retrain enabled |
|------+-------+---------------------------------------------|
| 3 | í 0 | Flow control disabled |
| | | |
| | 1 | Flow control enabled |
|------+-------+---------------------------------------------|
| 4 | í 0 | Stream mode for MNP |
| | | |
| | 1 | Block mode for MNP |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL CHARACTER - XOFF |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S33=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 19 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the character used to represent XOFF |
+------------------------------------------------------------+
+------------------------------------------------------------+
| FLOW CONTROL CHARACTER - XON |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S32=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 17 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | ASCII |
|--------------+---------------------------------------------|
| Description: | Sets the character used to represent XON |
+------------------------------------------------------------+
+------------------------------------------------------------+
| REPORT INFORMATION |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] In [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays information requested |
|--------------+---------------------------------------------|
| Command | Function |
|--------------+---------------------------------------------|
| I0 | Display product identification code |
|--------------+---------------------------------------------|
| I1 | Display ROM checksum |
|--------------+---------------------------------------------|
| I2 | Display OK or ERROR for ROM checksum |
|--------------+---------------------------------------------|
| I3 | Display firmware revision |
|--------------+---------------------------------------------|
| I4 | Display OEM string |
|--------------+---------------------------------------------|
| I5 | Display country code |
|--------------+---------------------------------------------|
| I6 | Display data pump model |
+------------------------------------------------------------+
+------------------------------------------------------------+
| SLEEP TIMER |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S24=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 0 |
|--------------+---------------------------------------------|
| Range: | 0-255 |
|--------------+---------------------------------------------|
| Unit: | 1 second |
|--------------+---------------------------------------------|
| Description: | Maximum duration of DTE and DCE inactivity |
| | allowed prior to initiating low-power sleep |
| | mode. |
+------------------------------------------------------------+
+------------------------------------------------------------+
| S-REGISTER - CONTENTS |
|------------------------------------------------------------|
| Type: | Immediate |
|--------------+---------------------------------------------|
| Format: | AT [cmds] ? [cmds] |
|--------------+---------------------------------------------|
| Description: | Displays contents of last S-register access |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TEST MODES |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format | AT [cmds] S16=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 128 |
|--------------+---------------------------------------------|
| Range: | 0-128 |
|--------------+---------------------------------------------|
| Unit: | Bit-mapped |
|--------------+---------------------------------------------|
| Description: | Controls loopback tests, analog, digital, |
| | remote digital, and self tests. |
|--------------+---------------------------------------------|
| Bit | Value | Function |
|------+-------+---------------------------------------------|
| 0 | í 0 | Local analog loopback not in progress |
| | | |
| | 1 | Local analog loopback in progress |
|------+-------+---------------------------------------------|
| 1 | í 0 | Not used |
|------+-------+---------------------------------------------|
| 2 | í 0 | Local digital loopback not in progress |
| | | |
| | 1 | Local digital loopback in progress |
|------+-------+---------------------------------------------|
| 3 | í 0 | Modem not in remote digital loopback |
| | | |
| | 1 | Remote digital loopback in progress |
|------+-------+---------------------------------------------|
| 4 | í 0 | Remote digital loopback not requested |
| | | |
| | 1 | Remote digital loopback requested |
|------+-------+---------------------------------------------|
| 5 | í 0 | Remote digital loopback w/ error count not |
| | | in progress |
| | 1 | |
| | | Remote digital loopback w/ error count in |
| | | progress |
|------+-------+---------------------------------------------|
| 6 | í 0 | Local analog loopback w/ self-test not in |
| | | progress |
| | 1 | |
| | | Local analog loopback w/ self-test in |
| | | progress |
|------+-------+---------------------------------------------|
| 7 | í 1 | Not used |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TRANSMISSION LEVEL - PSTN |
|------------------------------------------------------------|
| Type | Register |
|-------------+----------------------------------------------|
| Format | AT [cmds] S91=n [cmds] |
|-------------+----------------------------------------------|
| Default | 10 |
|-------------+----------------------------------------------|
| Range | 0-15 |
|-------------+----------------------------------------------|
| Unit | -1 dBm |
|-------------+----------------------------------------------|
| Description | Sets the signal level for transmission over |
| | switched phone lines |
+------------------------------------------------------------+
+------------------------------------------------------------+
| TRANSMISSION LEVEL - FAX |
|------------------------------------------------------------|
| Type: | Register |
|--------------+---------------------------------------------|
| Format: | AT [cmds] S92=n [cmds] |
|--------------+---------------------------------------------|
| Default: | 10 |
|--------------+---------------------------------------------|
| Range: | 0-15 |
|--------------+---------------------------------------------|
| Unit: | -1 dBm |
|--------------+---------------------------------------------|
| Description: | Sets the signal level for transmission |
| | while in fax mode |
+------------------------------------------------------------+
