       # IDENTITY SYSTEMS TECHNOLOGY, INC.

          ID2400

          Modem Type               Data (synchronous/asynchronous)
          Maximum Data Rate        2400bps
          Data Bus                 8-bit ISA
          Data Modulation Protocol Unidentified

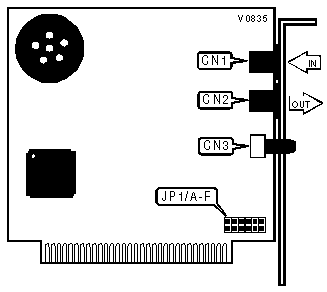

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |    Purpose     | Location |       Purpose       | Location |
          |----------------+----------+---------------------+----------|
          | Line in        |   CN1    | Volume control      |   CN3    |
          |----------------+----------+---------------------+----------|
          | Line out       |   CN2    |                     |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     PORT CONFIGURATION                     |
          |------------------------------------------------------------|
          | COM  | JP1/A  | JP1/B  | JP1/C  | JP1/D  | JP1/E  | JP1/F  |
          |------+--------+--------+--------+--------+--------+--------|
          |  í   |  Open  | Closed |  Open  | Closed | Closed |  Open  |
          | COM2 |        |        |        |        |        |        |
          |------+--------+--------+--------+--------+--------+--------|
          | COM1 | Closed |  Open  | Closed |  Open  | Closed |  Open  |
          |------+--------+--------+--------+--------+--------+--------|
          | COM3 | Closed |  Open  | Closed |  Open  |  Open  | Closed |
          |------+--------+--------+--------+--------+--------+--------|
          | COM4 |  Open  | Closed |  Open  | Closed |  Open  | Closed |
          +------------------------------------------------------------+
