       # 3COM CORPORATION

          COURIER DUAL STANDARD V.34 FAX (INTERNAL)

          Card Type              Fax, Modem (asynchronous/synchronous)
          Chip Set               U.S. Robotics
          Maximum Data Rate      28.8Kbps
          Maximum Fax Rate       14.4Kbps
          Data Bus               8-bit ISA
          Fax Class              Class I & II
          Data Modulation        Bell 103/212A
          Protocol
                                 ITU-T V.21, V.22, V.22bis, V.23,
                                 V.25bis, V.32, V.32bis, V.34

                                 Rockwell V.FC

                                 U.S. Robotics HST, V.32terbo
          Fax Modulation         ITU-T V.17, V.21, V.27ter, V.29
          Protocol
          Error                  HST, MNP5, V.42, V.42bis
          Correction/Compression

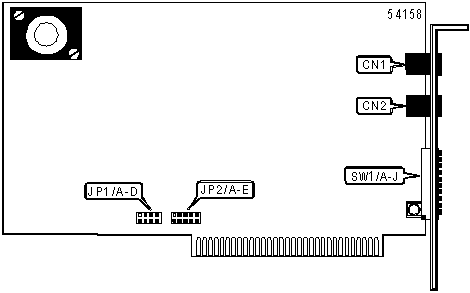

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |        Function        |  Label   |   Function   |  Label  |
          |------------------------------------------------------------|
          | Line out                    |    CN1     | Line in  | CN2  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                 Setting                 | Label | Position |
          |-----------------------------------------+-------+----------|
          | í DTR normal                            | SW1/A |   Off    |
          |-----------------------------------------+-------+----------|
          | DTR forced high                         | SW1/A |    On    |
          |-----------------------------------------+-------+----------|
          | í Verbose (word) format enabled         | SW1/B |   Off    |
          |-----------------------------------------+-------+----------|
          | Numeric format enabled                  | SW1/B |    On    |
          |-----------------------------------------+-------+----------|
          | í Result code display enabled           | SW1/C |    On    |
          |-----------------------------------------+-------+----------|
          | Result code display disabled            | SW1/C |   Off    |
          |-----------------------------------------+-------+----------|
          | í Local echo enabled                    | SW1/D |   Off    |
          |-----------------------------------------+-------+----------|
          | Local echo disabled                     | SW1/D |    On    |
          |-----------------------------------------+-------+----------|
          | í Auto-answer disabled                  | SW1/E |    On    |
          |-----------------------------------------+-------+----------|
          | Auto-answer enabled, off-hook on first  | SW1/E |   Off    |
          | ring                                    |       |          |
          |-----------------------------------------+-------+----------|
          | í CD normal                             | SW1/F |   Off    |
          |-----------------------------------------+-------+----------|
          | CD forced high                          | SW1/F |    On    |
          |-----------------------------------------+-------+----------|
          | í Result code display enabled in both   | SW1/G |   Off    |
          | originate and answer mode               |       |          |
          |-----------------------------------------+-------+----------|
          | Result code display enabled in          | SW1/G |    On    |
          | originate mode only                     |       |          |
          |-----------------------------------------+-------+----------|
          | í Smart mode                            | SW1/H |    On    |
          |-----------------------------------------+-------+----------|
          | Dumb mode                               | SW1/H |   Off    |
          |-----------------------------------------+-------+----------|
          | í Escape code response: modem goes      | SW1/I |   Off    |
          | on-hook, off-line command mode, returns |       |          |
          | ‘NO CARRIER’                            |       |          |
          |-----------------------------------------+-------+----------|
          | Escape code response: modem stays       | SW1/I |    On    |
          | on-line, on-line command mode, returns  |       |          |
          | ‘OK’                                    |       |          |
          |-----------------------------------------+-------+----------|
          | í Reset and load from profiles in NVRAM | SW1/J |   Off    |
          |-----------------------------------------+-------+----------|
          | Reset and load from factory settings in | SW1/J |    On    |
          | ROM                                     |       |          |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    SERIAL PORT ADDRESS                     |
          |------------------------------------------------------------|
          |   Setting   |   JP1/A   |   JP1/B   |   JP1/C   |  JP1/D   |
          |-------------+-----------+-----------+-----------+----------|
          | COM1 (3F8h) |  Closed   |   Open    |   Open    |   Open   |
          |-------------+-----------+-----------+-----------+----------|
          | COM2 (2F8h) |   Open    |  Closed   |   Open    |   Open   |
          |-------------+-----------+-----------+-----------+----------|
          | COM3 (3E8h) |   Open    |   Open    |  Closed   |   Open   |
          |-------------+-----------+-----------+-----------+----------|
          | COM4 (2E8h) |   Open    |   Open    |   Open    |  Closed  |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                    INTERRUPT SELECTION                     |
          |------------------------------------------------------------|
          | Setting  |  JP2/A  |  JP2/B  |  JP2/C  |  JP2/D  |  JP2/E  |
          |----------+---------+---------+---------+---------+---------|
          |    2     | Closed  |  Open   |  Open   |  Open   |  Open   |
          |----------+---------+---------+---------+---------+---------|
          |    3     |  Open   | Closed  |  Open   |  Open   |  Open   |
          |----------+---------+---------+---------+---------+---------|
          |    4     |  Open   |  Open   | Closed  |  Open   |  Open   |
          |----------+---------+---------+---------+---------+---------|
          |    5     |  Open   |  Open   |  Open   | Closed  |  Open   |
          |----------+---------+---------+---------+---------+---------|
          |    7     |  Open   |  Open   |  Open   |  Open   | Closed  |
          +------------------------------------------------------------+

                            Proprietary AT Command Set

                  See document V2007 for a full command summary.
