       # SMART AND FRIENDLY

          CD ROCKET EXTERNAL

          Device Type       External CD-ROM
          Interface         SCSI
          Spin Rate         20x/8x
          (Read/Write)
          Formats Supported CD-ROM (Mode 1 & Mode 2), CD-DA, CD-XA,
          Read              CD-I, CD- Bridge, Video CD, CD-Extra, CD-R
          Formats Supported CD-ROM (Mode 1 & Mode 2), CD-DA, CD-XA,
          Write             CD-I, CD- Bridge, Video CD, CD-Extra, CD-R

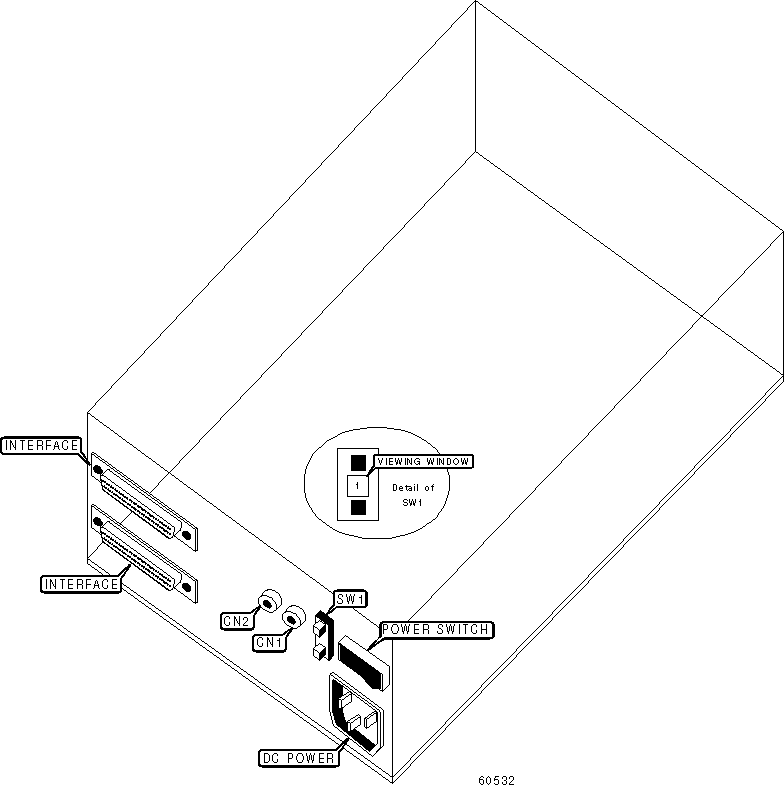

          View              Top

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |       Function       | Label |      Function       | Label |
          |----------------------+-------+---------------------+-------|
          | Audio line out -     |  CN1  | Audio line out -    |  CN2  |
          | right                |       | left                |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          | DRIVE SELECT ID                                            |
          |------------------------------------------------------------|
          | Note: | SW1 is for SCSI ID selection, 0 through 6. To      |
          |       | select SCSI ID, press the "+" button to increase   |
          |       | value and the "-" button to decrease value.        |
          +------------------------------------------------------------+
