       # PANASONIC INDUSTRIAL COMPANY

          KXL-783A

          Device Type       External CD-ROM
          Interface         SCSI-2
          Spin Rate (Read)  8x
          Formats Supported CD-XA, CD-DA, CD-I, CD-ROM (Mode 1 & Mode
          Read              2), Photo-CD, Video CD, CD-Extra

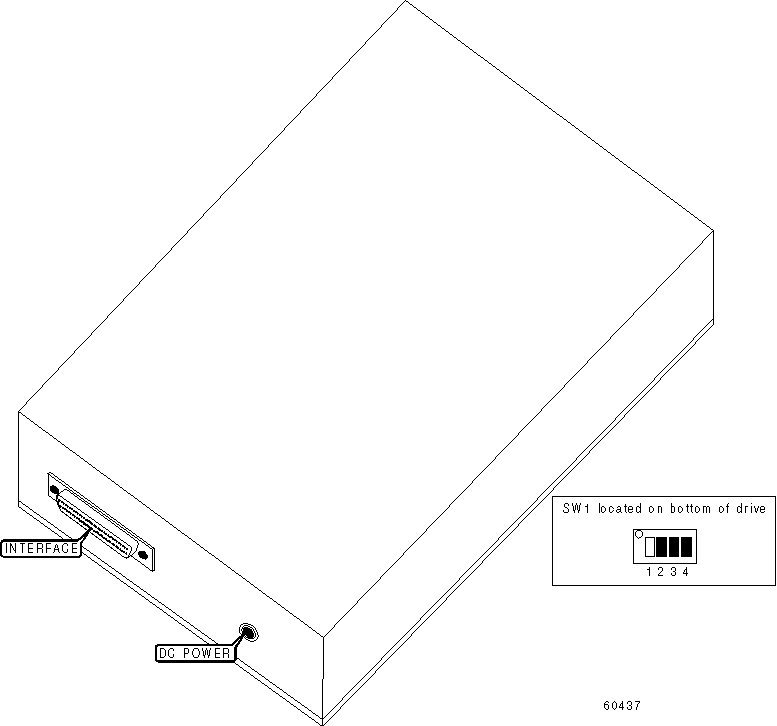

          View              Top

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |              Setting              |  Label  |   Position   |
          |-----------------------------------+---------+--------------|
          | » | Termination enabled           |  SW1/4  |     Off      |
          |---+-------------------------------+---------+--------------|
          |   | Termination disabled          |  SW1/4  |      On      |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      DRIVE SELECT ID                       |
          |------------------------------------------------------------|
          |   Drive ID    |    SW1/1     |    SW1/2     |    SW1/3     |
          |---------------+--------------+--------------+--------------|
          |       0       |     Off      |     Off      |     Off      |
          |---------------+--------------+--------------+--------------|
          |       1       |      On      |     Off      |     Off      |
          |---------------+--------------+--------------+--------------|
          |       2       |     Off      |      On      |     Off      |
          |---------------+--------------+--------------+--------------|
          |       3       |      On      |      On      |     Off      |
          |---------------+--------------+--------------+--------------|
          |       4       |     Off      |     Off      |      On      |
          |---------------+--------------+--------------+--------------|
          |       5       |      On      |     Off      |      On      |
          |---------------+--------------+--------------+--------------|
          |       6       |     Off      |      On      |      On      |
          |---------------+--------------+--------------+--------------|
          |       7       |      On      |      On      |      On      |
          +------------------------------------------------------------+
