       # RICOH CORPORATION

          MP6200S

          Device Type             Internal CD-ROM
          Interface               SCSI-2
          Spin Rate (Read/Write)  (Read) 6x, (Write) 1x/2x
          Formats Supported Read  CD-R, CD-RW, CD-ROM (Mode 1 & 2)
          Formats Supported Write CD-R, CD-RW, CD-ROM (Mode 1 & 2)

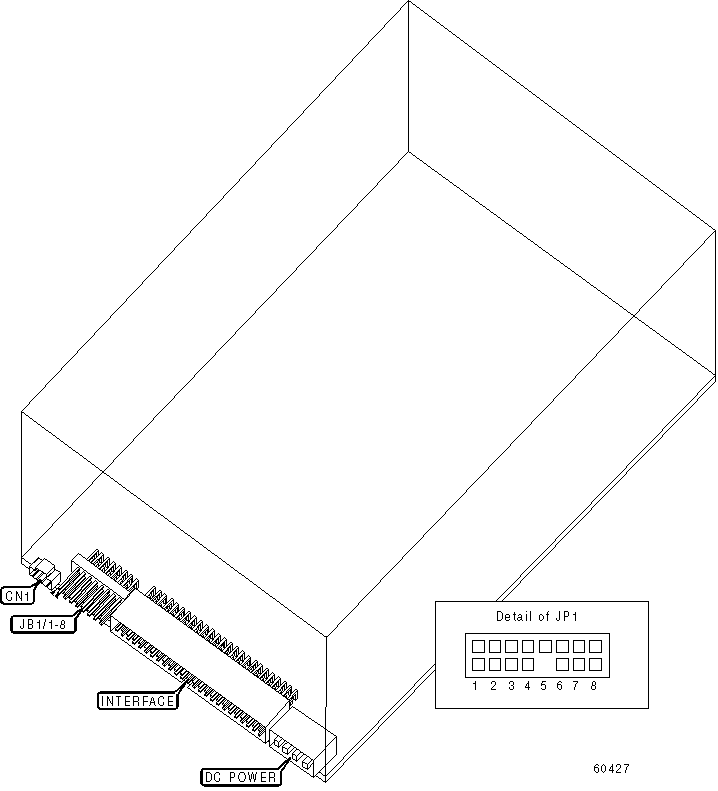

          View                    Top

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |           Function            |           Label            |
          |------------------------------------------------------------|
          |          Audio line out          |           CN1           |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |               Setting               | Label |   Position   |
          |-------------------------------------+-------+--------------|
          | í Factory configured - do not alter | JB1/1 | Unidentified |
          |-------------------------------------+-------+--------------|
          | í Factory configured - do not alter | JB1/5 |     Open     |
          |-------------------------------------+-------+--------------|
          | í Factory configured - do not alter | JB1/6 |     Open     |
          |-------------------------------------+-------+--------------|
          | í Factory configured - do not alter | JB1/7 |     Open     |
          |-------------------------------------+-------+--------------|
          | í Factory configured - do not alter | JB1/8 |     Open     |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      DRIVE SELECT ID                       |
          |------------------------------------------------------------|
          |   Drive ID    |    JB1/2     |    JB1/3     |    JB1/4     |
          |---------------+--------------+--------------+--------------|
          |      í 0      |     Open     |     Open     |     Open     |
          |---------------+--------------+--------------+--------------|
          |       1       |    Closed    |     Open     |     Open     |
          |---------------+--------------+--------------+--------------|
          |       2       |     Open     |    Closed    |     Open     |
          |---------------+--------------+--------------+--------------|
          |       3       |    Closed    |    Closed    |     Open     |
          |---------------+--------------+--------------+--------------|
          |       4       |     Open     |     Open     |    Closed    |
          |---------------+--------------+--------------+--------------|
          |       5       |    Closed    |     Open     |    Closed    |
          |---------------+--------------+--------------+--------------|
          |       6       |     Open     |    Closed    |    Closed    |
          |---------------+--------------+--------------+--------------|
          |       7       |    Closed    |    Closed    |    Closed    |
          +------------------------------------------------------------+
