       # PHILIPS CONSUMER ELECTRONICS, CO.

          PCA103CD, PCA123CD, PCA163CD

          Device Type       CD-ROM
          Interface         ATAPI
          Spin Rate         10x/12x (PCA103CD),

                            12x (PCA123CD),

                            10x-16x (PCA163CD)
          Formats Supported CD-XA, CD-DA, CD-I/FMV, CD-ROM (Mode 1 &
          Read              Mode 2), Photo-CD, Video CD, Red & Yellow
                            Book, CD-Extra, Karaoke-CD

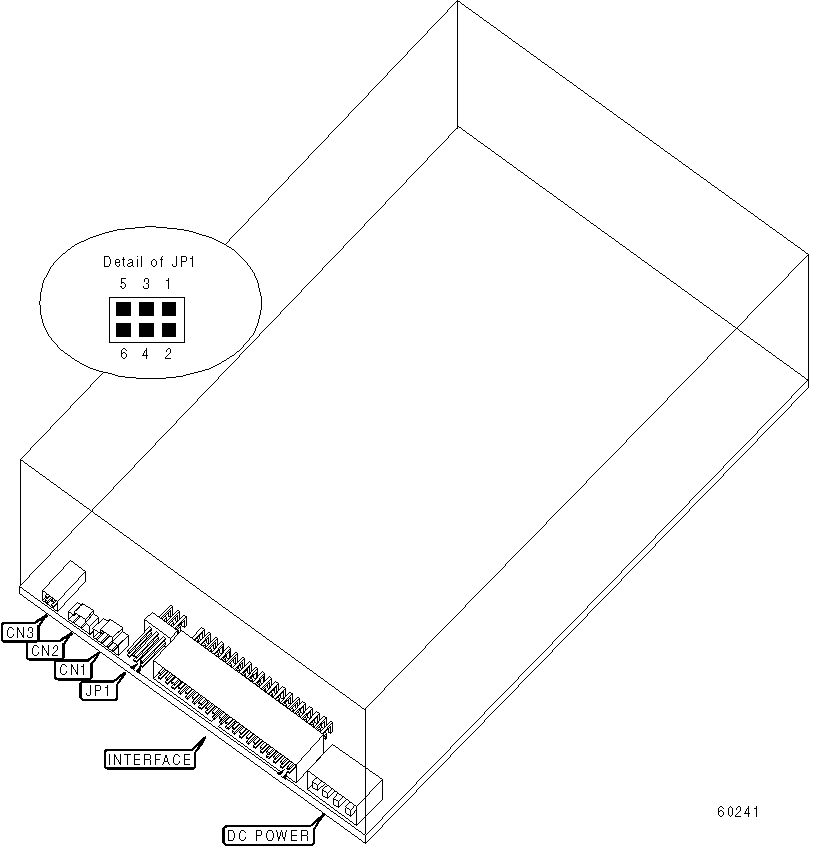

          View              Top

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |          Function           | Label |   Function   | Label |
          |-----------------------------+-------+--------------+-------|
          | Audio line out connector    |  CN1  | Test jumper  |  CN3  |
          |-----------------------------+-------+--------------+-------|
          | Digital audio out connector |  CN2  |              |       |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |                Function                | Label | Position  |
          |----------------------------------------+-------+-----------|
          | » | Factory configured - do not alter. |  JP1  | Pins 5 &  |
          |   |                                    |       |  6 open   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     ATAPI MASTER/SLAVE                     |
          |------------------------------------------------------------|
          |          Setting           |              JP1              |
          |----------------------------+-------------------------------|
          | Master                     |       Pins 1 & 2 closed       |
          |----------------------------+-------------------------------|
          | Slave                      |       Pins 3 & 4 closed       |
          +------------------------------------------------------------+
