       # MAXOPTIX CORPORATION

          CD MAX (EXTERNAL)

          Device Type       External CD-ROM
          Interface         SCSI-2
          Spin Rate         6x/2x
          (Read/Write)
          Formats Supported CD-XA, CD-DA, CD-R, CD-I, CD-ROM (Mode 1 &
          Read              Mode 2), Photo-CD, CD-E, CD-RW
          Formats Supported CD-XA, CD-DA, CD-R, CD-I, CD-ROM (Mode 1 &
          Write             Mode 2), Photo-CD, CD-E, CD-RW
          View              Top

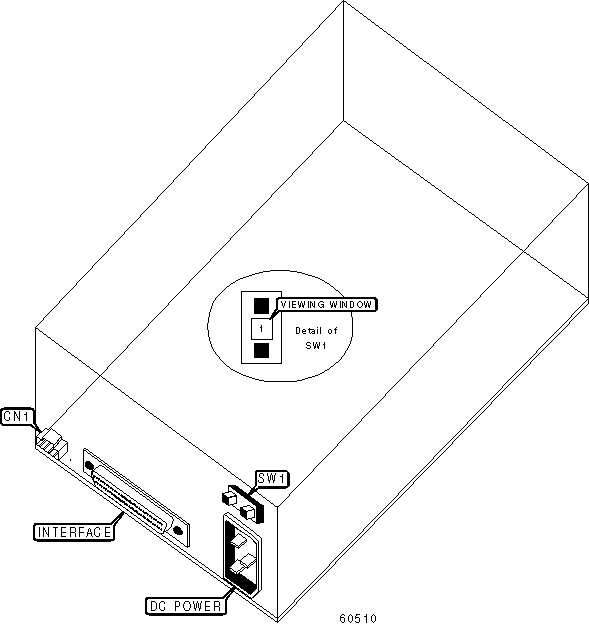

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |           Function            |           Label            |
          |-------------------------------+----------------------------|
          | Audio line out                |            CN1             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          | MISCELLANEOUS TECHNICAL NOTES                              |
          |------------------------------------------------------------|
          |      Note : SW1 is for SCSI id selection, 0 through 6. To  |
          |      select SCSI ID, press the "+" button to increase      |
          |      value and the "-" button to decrease value.           |
          +------------------------------------------------------------+
