       # NEC TECHNOLOGIES, INC.

          CDR-1810

          Device Type          CD-ROM
          Interface            SCSI
          Spin Rate            12x/24x variable
          Formats Supported    Photo-CD (single-session & multi-session)
          Read

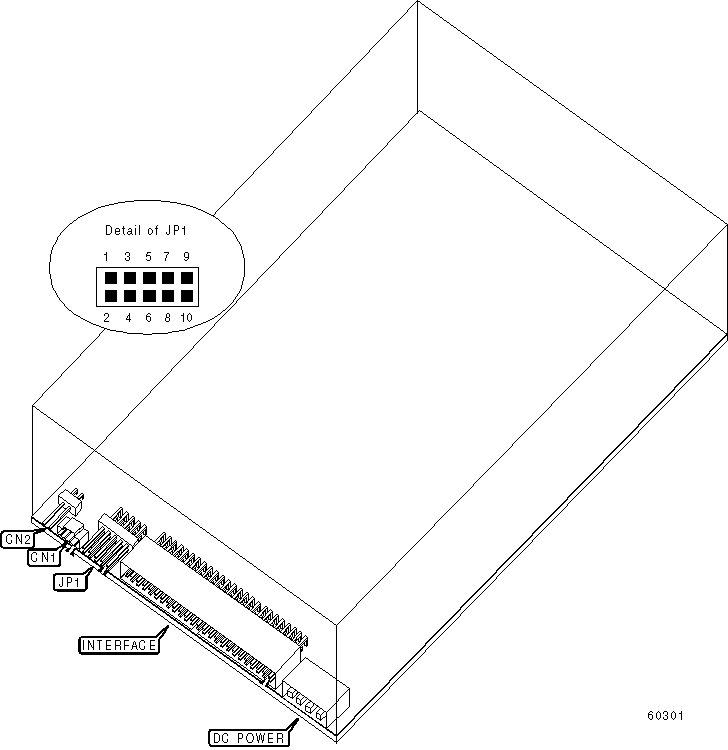

          View                 Top

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |      Function      |  Label  |      Function      | Label  |
          |--------------------+---------+--------------------+--------|
          | Analog audio out   |   CN1   | Digital audio out  |  CN2   |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |            Function            |   Label    |   Position   |
          |--------------------------------+------------+--------------|
          | » | Factory configured - do    | JP1/Pins 7 | Unidentified |
          |   | not alter.                 |    & 8     |              |
          |---+----------------------------+------------+--------------|
          | » | Termination disabled       | JP1/Pins 9 |     Open     |
          |   |                            |    & 10    |              |
          |---+----------------------------+------------+--------------|
          |   | Termination enabled        | JP1/Pins 9 |    Closed    |
          |   |                            |    & 10    |              |
          |---+----------------------------+------------+--------------|
          | » | Factory configured - do    |  JP1/Pins  | Unidentified |
          |   | not alter.                 |  11 & 12   |              |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                      DRIVE SELECT ID                       |
          |------------------------------------------------------------|
          | Drive ID | JP1/Pins 1 & 2 | JP1/Pins 3 & 4 | JP1/Pins 5 &  |
          |          |                |                |       6       |
          |----------+----------------+----------------+---------------|
          |    0     |      Open      |      Open      |     Open      |
          |----------+----------------+----------------+---------------|
          |    1     |     Closed     |      Open      |     Open      |
          |----------+----------------+----------------+---------------|
          |    2     |      Open      |     Closed     |     Open      |
          |----------+----------------+----------------+---------------|
          |    3     |     Closed     |     Closed     |     Open      |
          |----------+----------------+----------------+---------------|
          |    4     |      Open      |      Open      |    Closed     |
          |----------+----------------+----------------+---------------|
          |    5     |     Closed     |      Open      |    Closed     |
          |----------+----------------+----------------+---------------|
          |    6     |      Open      |     Closed     |    Closed     |
          |----------+----------------+----------------+---------------|
          |    7     |     Closed     |     Closed     |    Closed     |
          +------------------------------------------------------------+
