       # NEWCOM, INC.

          20X ATAPI CD-ROM

          Device Type       CD-ROM
          Interface         ATAPI
          Spin Rate         20x
          (Read/Write)
          Formats Supported CD-DA, CD-ROM (Mode 1 & Mode 2), Photo-CD,
          Read              Video CD, Red & Yellow Book, CD-Extra,
                            Karaoke CD

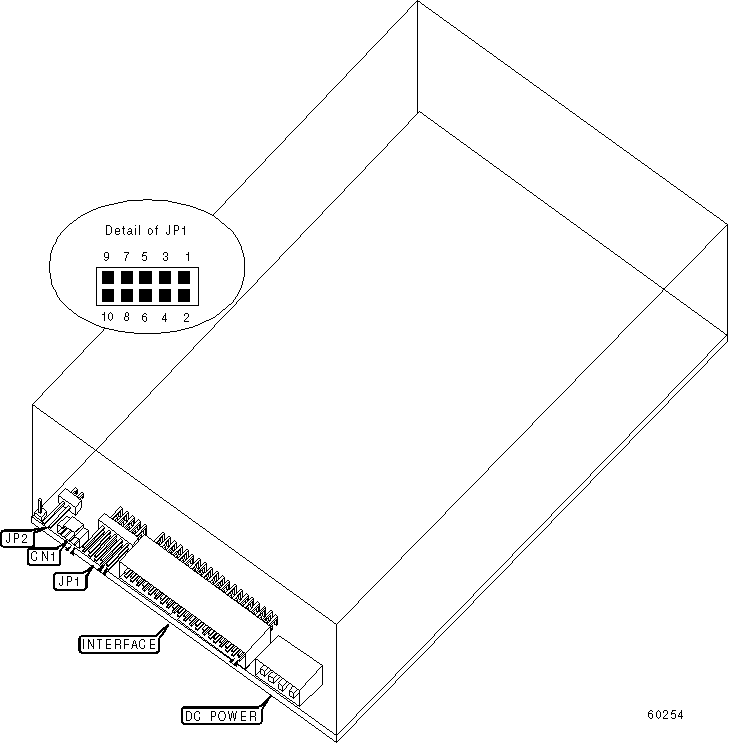

          View              Top

 (IMG) IMG 1


          +------------------------------------------------------------+
          |                        CONNECTIONS                         |
          |------------------------------------------------------------|
          |           Function            |           Label            |
          |-------------------------------+----------------------------|
          | Analog audio out              |            CN1             |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                 USER CONFIGURABLE SETTINGS                 |
          |------------------------------------------------------------|
          |             Function             |  Label   |   Position   |
          |----------------------------------+----------+--------------|
          | » | Factory configured - do not  | JP1/Pins | Unidentified |
          |   | alter.                       |  7 & 8   |              |
          |---+------------------------------+----------+--------------|
          | » | Factory configured - do not  | JP1/Pins | Unidentified |
          |   | alter.                       |  9 & 10  |              |
          |---+------------------------------+----------+--------------|
          | » | Factory configured - do not  |   JP2    | Unidentified |
          |   | alter.                       |          |              |
          +------------------------------------------------------------+

          +------------------------------------------------------------+
          |                     ATAPI MASTER/SLAVE                     |
          |------------------------------------------------------------|
          |                Setting                 |        JP1        |
          |----------------------------------------+-------------------|
          | » | Drive is slave                     | Pins 3 & 4 closed |
          |---+------------------------------------+-------------------|
          |   | Drive is master                    | Pins 1 & 2 closed |
          |---+------------------------------------+-------------------|
          |   | Master/slave determined by cable   | Pins 5 & 6 closed |
          |   | select                             |                   |
          +------------------------------------------------------------+
